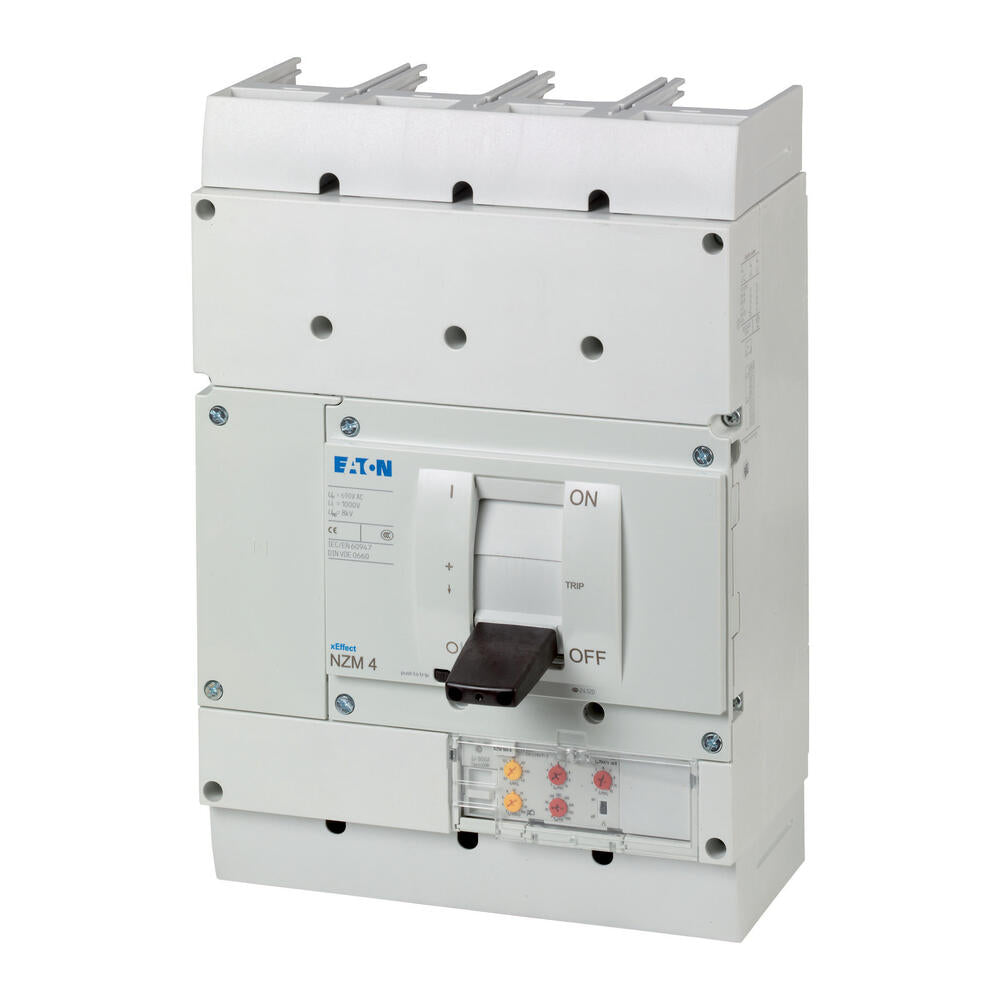

Eaton Circuit Breaker 4P 1600A 1000A 4th Pole 85kA IEC NZM4 - 265997
Notice: This product will be discontinued in the future
The Eaton Industries MCCB power circuit-breaker, NZM4 model comes with four poles and a nominal continuous current Iu of 1600A. It has a rated voltage of 690V and a nominal cut-off capacity, Icu of 50kA at 400V. With an overload protection adjustment range of 800 - 1600A, a short-delay adjustment range of 1600 - 16000A, and an instantaneous short-circuit adjustment range of 3200 - 19200A. The circuit-breaker offers switching capacity of 400/415 V 50 Hz (Icu): 85 kA. The breaker can be installed in fixed positions and supports screw connections. It conforms to IEC standards and provides protection for systems, cables, selectivity, and generators.
Notice: This product will be discontinued in the future
Description
The Eaton Industries MCCB power circuit-breaker, NZM4 model comes with four poles and a nominal continuous current Iu of 1600A. It has a rated voltage of 690V and a nominal cut-off capacity, Icu of 50kA at 400V. With an overload protection adjustment range of 800 - 1600A, a short-delay adjustment range of 1600 - 16000A, and an instantaneous short-circuit adjustment range of 3200 - 19200A. The circuit-breaker offers switching capacity of 400/415 V 50 Hz (Icu): 85 kA. The breaker can be installed in fixed positions and supports screw connections. It conforms to IEC standards and provides protection for systems, cables, selectivity, and generators.
