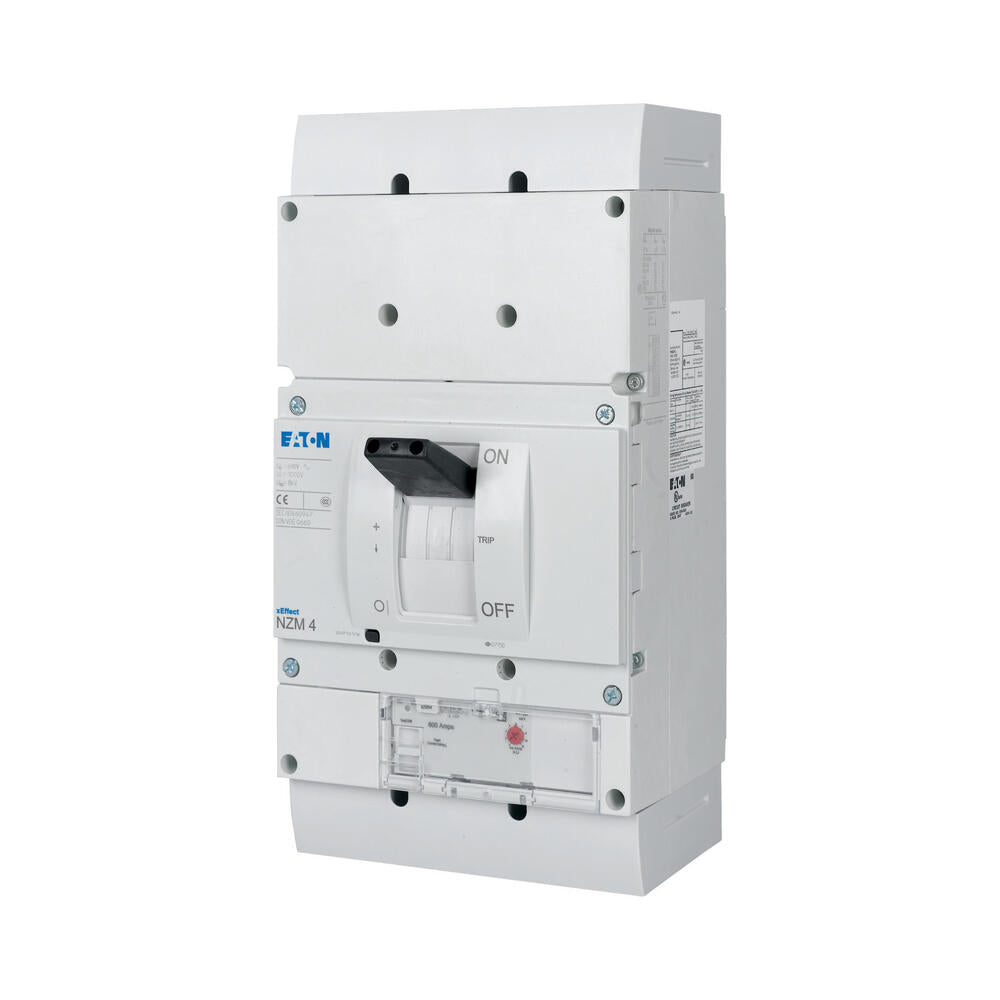

Eaton Circuit Breaker 3P 700A NZM4 50KA UL/IEC - 271109
Notice: This product will be discontinued in the future
The Eaton Industries MCCB power circuit breaker is rated for a continuous current Iu of 700A and a nominal voltage of 690V. Its short-circuit breaking capacity Icu is rated at 37kA at 400V. The circuit breaker, which is designed as a built-in fixed installation device, offers an overload setting range of 700A and an instantaneous short-circuit setting range of 1400-8400A. The NZM4 model features a three-pole design, a switching capacity of 100kA at 480Y/277V 60Hz, 42kA at 480V 60Hz, and a rated uninterrupted current (Iu) of 700A. It is approved according to UL/CSA, IEC standards and primarily provides system and cable protection.
Notice: This product will be discontinued in the future
Description
The Eaton Industries MCCB power circuit breaker is rated for a continuous current Iu of 700A and a nominal voltage of 690V. Its short-circuit breaking capacity Icu is rated at 37kA at 400V. The circuit breaker, which is designed as a built-in fixed installation device, offers an overload setting range of 700A and an instantaneous short-circuit setting range of 1400-8400A. The NZM4 model features a three-pole design, a switching capacity of 100kA at 480Y/277V 60Hz, 42kA at 480V 60Hz, and a rated uninterrupted current (Iu) of 700A. It is approved according to UL/CSA, IEC standards and primarily provides system and cable protection.
