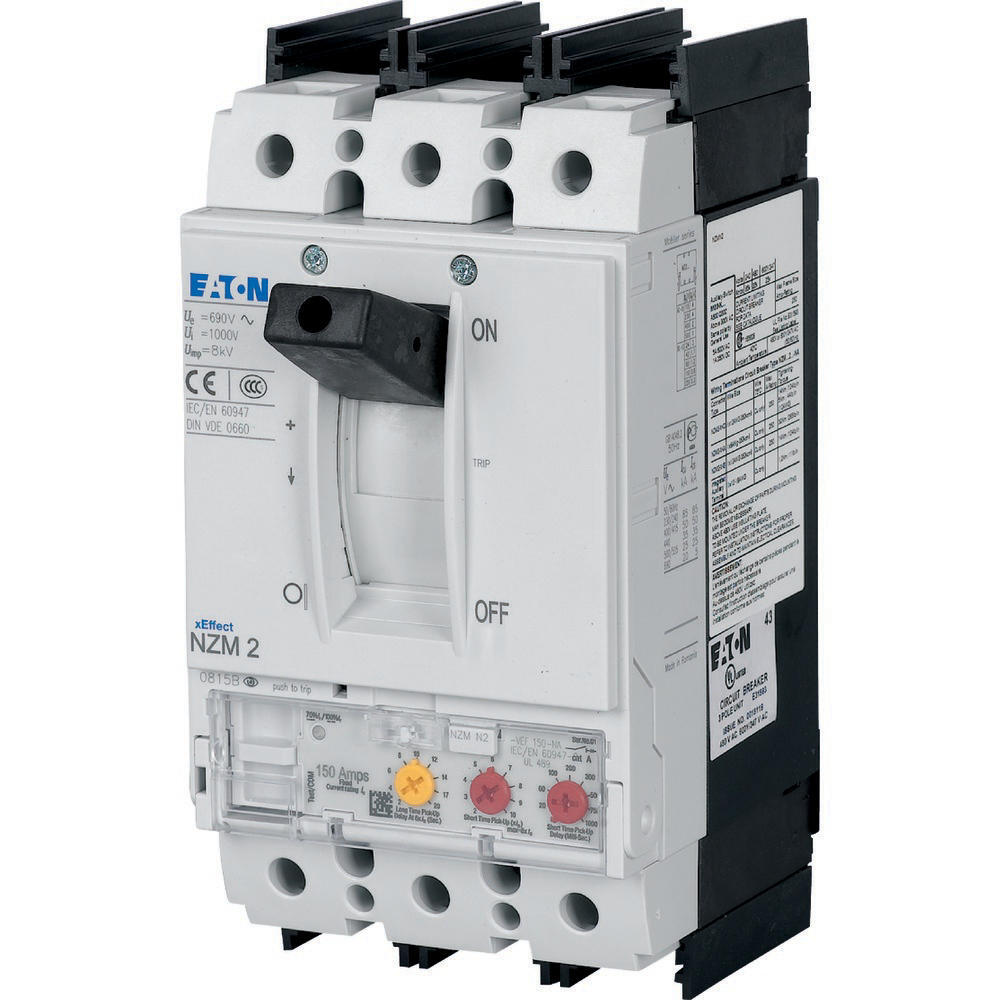

Eaton Circuit-Breaker 3P 200A 150KA UL IEC - 271133
This Eaton Industries circuit-breaker labelled NZM2 features three poles and a rated uninterrupted current of 200 A. It is equipped with a maximum switching capacity of 100 kA at 480Y/277 V 60 Hz, 50 kA at 600Y/347 V 60 Hz, and again 100 kA at 480 V 60 Hz. The MCCB has a protective function for systems, cable, selectivity, and generator protection. It has been approved as per UL/CSA, IEC standards and is designed for fixed installation with a screw connection. The device has an adjustable overload protection range of 200A, a short-delay setting range of 400 - 2000A, and an instantaneous short-circuit setting range of 2400A.
- Regular price
- $2,254.16 USD
We sell only to registered businesses
Description
This Eaton Industries circuit-breaker labelled NZM2 features three poles and a rated uninterrupted current of 200 A. It is equipped with a maximum switching capacity of 100 kA at 480Y/277 V 60 Hz, 50 kA at 600Y/347 V 60 Hz, and again 100 kA at 480 V 60 Hz. The MCCB has a protective function for systems, cable, selectivity, and generator protection. It has been approved as per UL/CSA, IEC standards and is designed for fixed installation with a screw connection. The device has an adjustable overload protection range of 200A, a short-delay setting range of 400 - 2000A, and an instantaneous short-circuit setting range of 2400A.
