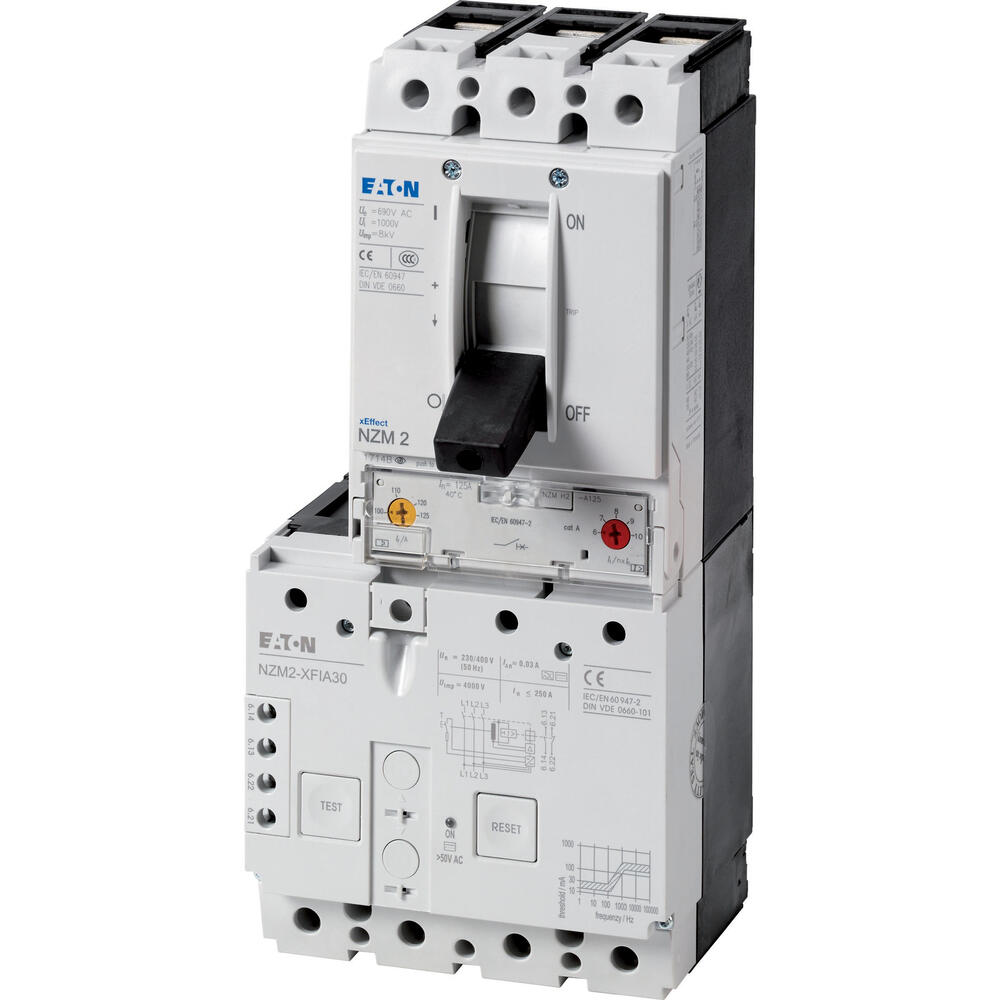

Eaton Circuit Breaker 3P 100A with Residual Current Circuit Breaker - 158530
The Eaton Industries MCCB circuit-breaker NZM2 is a three-pole device, capable of switching a capacity of 400/415 V 50 Hz with a breaking capacity (ICU) of 150 kA. It features a rated current, also considered as the rated uninterrupted current (In = Iu) of 100A, with an adjustable overcurrent protection range of 80-100A, and an un-delayed short-circuit range of 600-1000A. The device is designed for fixed installation and employs a screw connection system. It is certified with an International Electrotechnical Commission (IEC) standard approval. The protective functions include system and cable protection, fire protection, and personnel protection.
- Regular price
- $1,276.38 USD
We sell only to registered businesses
Description
The Eaton Industries MCCB circuit-breaker NZM2 is a three-pole device, capable of switching a capacity of 400/415 V 50 Hz with a breaking capacity (ICU) of 150 kA. It features a rated current, also considered as the rated uninterrupted current (In = Iu) of 100A, with an adjustable overcurrent protection range of 80-100A, and an un-delayed short-circuit range of 600-1000A. The device is designed for fixed installation and employs a screw connection system. It is certified with an International Electrotechnical Commission (IEC) standard approval. The protective functions include system and cable protection, fire protection, and personnel protection.
