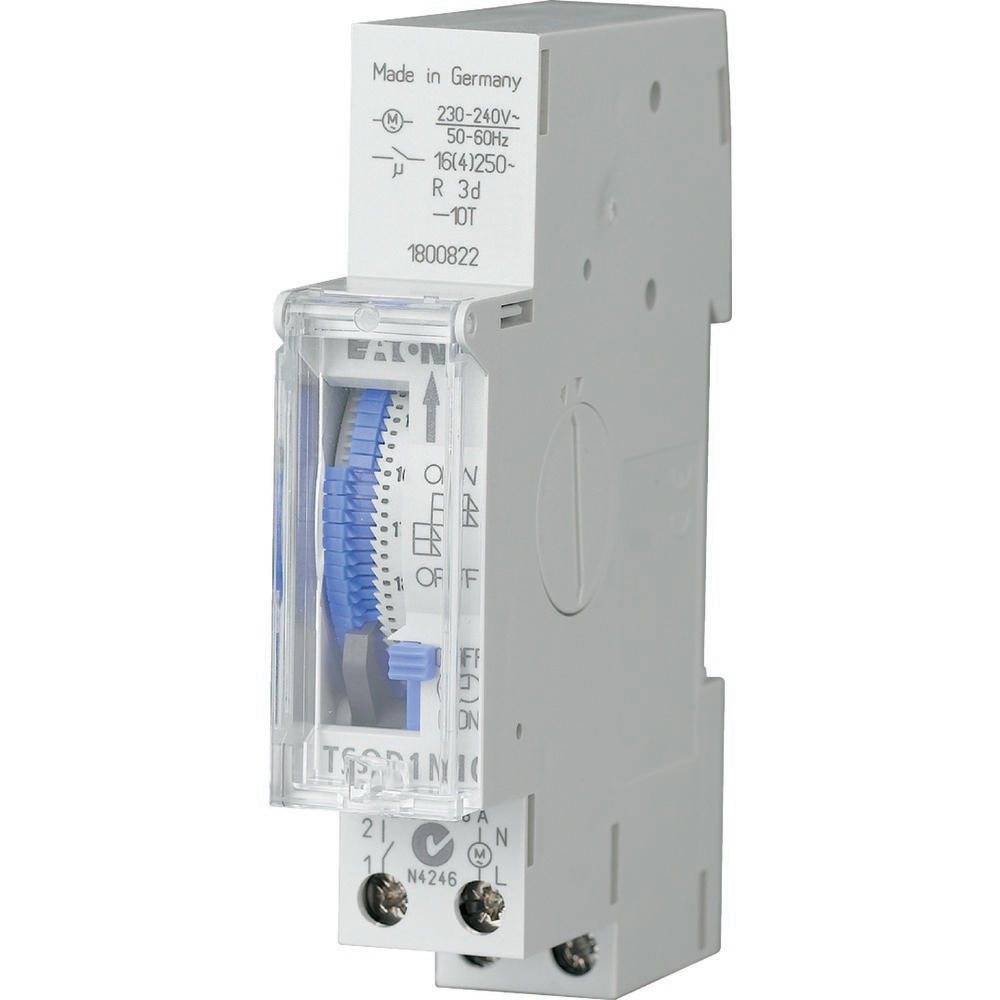

Eaton Analog Time Switch Quartz Day 1 Make DIN Rail Mount - 167388

Eaton Analog Time Switch Quartz Day 1 Make DIN Rail Mount - 167388
Eaton Analog Time Switch Quartz Day 1 Make DIN Rail Mount - 167388
Image may vary slightly
See specifications for accurate information.
Reference: E3K42
Brand: EATON INDUSTRIES
Mfr. Part: 167388

This is a modularly installed time switch designed for panel building, with a size of 17.5x65.5x90mm. It is equipped with a DIN rail and operates with a 24-hour program. The power supply voltage is 230 - 240V and it has a make contact contact execution with 1 channel. The device has an autonomy of approximately 72 hours, equivalent to around 3 days. Moreover, it has a protection degree of IP20 and a width in module units of 1. The shortest changeover time is 15 minutes and it also offers continuous switch ON/OFF. The switch has 1 N/O 16A 250V~ sealable transparent cover.

View all
Note: product cannot be returned
$80.96
excl VAT
In stock +16 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 16 days. Up to 31 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 18 - 19 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

This is a modularly installed time switch designed for panel building, with a size of 17.5x65.5x90mm. It is equipped with a DIN rail and operates with a 24-hour program. The power supply voltage is 230 - 240V and it has a make contact contact execution with 1 channel. The device has an autonomy of approximately 72 hours, equivalent to around 3 days. Moreover, it has a protection degree of IP20 and a width in module units of 1. The shortest changeover time is 15 minutes and it also offers continuous switch ON/OFF. The switch has 1 N/O 16A 250V~ sealable transparent cover.

Downloads

Specifications

Mounting method
DIN rail
Number of channels
1
Supply voltage (V)
230 V to 240 V
Voltage type of supply voltage
AC/DC
Frequency supply voltage (Hz)
45 Hz to 60 Hz
Autonomy in hours
72
Autonomy in years
0
Accuracy per day (s)
1
60 min program
No
24 h program
Yes
Weekly program
No
Annual program
No
Mains synchronous
No
Quartz controlled
Yes
Program shift divide 1 (min)
15
Program shift divide 2 (min)
0
Automatic switching summer-/winter time
No
Manual override
Yes
Switching preselection
No
Nominal switching current at 250 V AC (A)
16
Max. switching power LED (W)
600
Potential free switch contact
Yes
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
Width in number of modular spacings
1
Width (mm)
The product's width without packaging.
17.5
Height (mm)
The product's height without packaging.
90
Depth (mm)
The product's depth without packaging.
65.5
