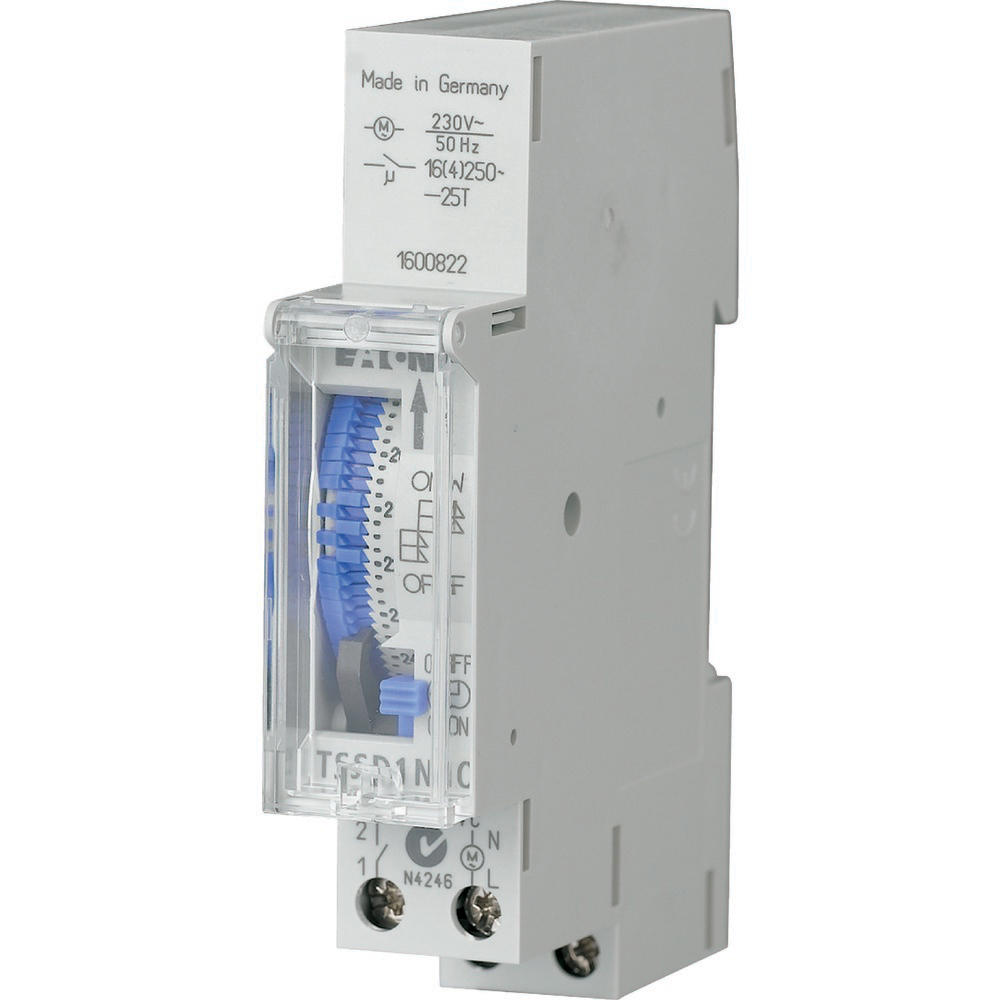

Eaton Analog Time Switch 1 Make Day Sync DIN Rail Mount - 167389

Eaton Analog Time Switch 1 Make Day Sync DIN Rail Mount - 167389
Eaton Analog Time Switch 1 Make Day Sync DIN Rail Mount - 167389
Image may vary slightly
See specifications for accurate information.
Reference: E3K43
Brand: EATON INDUSTRIES
Mfr. Part: 167389

The Eaton Industries TS Analoog is a serially mounted time switch designed for panel construction. It comes without a power reserve and has a dimension of 17.5x65.5x90mm, making it suitable for DIN-rail installation. It operates on a 24-hour program, with the shortest switch-over time being 15 minutes. This time switch is equipped with a one-touch continuous ON/OFF switch, and one N/O 16A/250V~ making contact channel. The power supply voltage is 230V, at a frequency of 50Hz. It also features a sealable transparent cover and its protection grade is IP20. It is 1 module unit wide and includes a manual operation function.

View all
Note: product cannot be returned
$66.04
excl VAT
In stock +23 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 23 days. Up to 38 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 25 - 26 business days

Customers rate us: 4.98 / 5

509 reviews at TrustedShops

Description
Specifications
Downloads

Description

The Eaton Industries TS Analoog is a serially mounted time switch designed for panel construction. It comes without a power reserve and has a dimension of 17.5x65.5x90mm, making it suitable for DIN-rail installation. It operates on a 24-hour program, with the shortest switch-over time being 15 minutes. This time switch is equipped with a one-touch continuous ON/OFF switch, and one N/O 16A/250V~ making contact channel. The power supply voltage is 230V, at a frequency of 50Hz. It also features a sealable transparent cover and its protection grade is IP20. It is 1 module unit wide and includes a manual operation function.

Downloads

Specifications

Mounting method
DIN rail
Number of channels
1
Supply voltage (V)
230 V to 230 V
Voltage type of supply voltage
AC
Frequency supply voltage (Hz)
50 Hz to 50 Hz
Autonomy in hours
0
Autonomy in years
0
Accuracy per day (s)
0
60 min program
No
24 h program
Yes
Weekly program
No
Annual program
No
Mains synchronous
Yes
Quartz controlled
Yes
Program shift divide 1 (min)
15
Program shift divide 2 (min)
0
Automatic switching summer-/winter time
No
Manual override
Yes
Switching preselection
Yes
Nominal switching current at 250 V AC (A)
16
Max. switching power LED (W)
600
Potential free switch contact
Yes
Degree of protection (IP)
The Ingress Protection (IP) rating indicating the product's resistance to dust and water, crucial for outdoor or harsh conditions.
IP20
Width in number of modular spacings
1
Width (mm)
The product's width without packaging.
17.5
Height (mm)
The product's height without packaging.
90
Depth (mm)
The product's depth without packaging.
65.5
