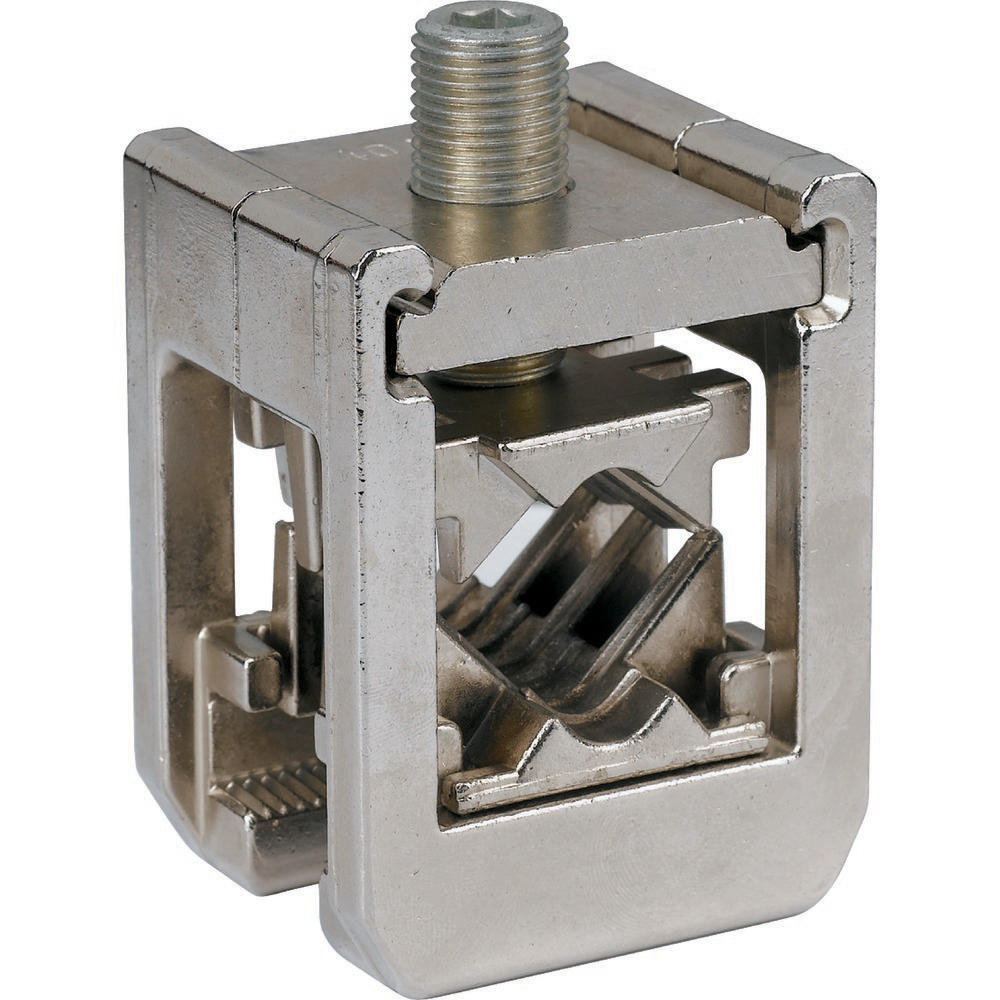

Eaton AK300 Connection Terminal 95-300mm2 T-Profile - 138363 [3 Pieces]

Eaton AK300 Connection Terminal 95-300mm2 T-Profile - 138363 [3 Pieces]
Eaton AK300 Connection Terminal 95-300mm2 T-Profile - 138363 [3 Pieces]
Image may vary slightly
See specifications for accurate information.
Reference: E3K7D-X3
Brand: EATON INDUSTRIES
Mfr. Part: 138363

The Eaton Industries Connection Terminal SASY60i is designed for a connection to the busbars of 30mm width and 10mm thickness. The terminal width itself is 48mm and can accommodate wire cross-section from 95mm² to a maximum of 300mm². The maximum nominal operating current, Ie, for this terminal is rated at 630A. This terminal is versatile and can suitably connect to both band conductor and round wire. It can be used with double T profile and triple T profile and the contact is achieved via a cable block.

Contains 3 pieces

View all
Note: product cannot be returned
$324.76
excl VAT
In stock +16 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 16 days. Up to 9 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 18 - 19 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

The Eaton Industries Connection Terminal SASY60i is designed for a connection to the busbars of 30mm width and 10mm thickness. The terminal width itself is 48mm and can accommodate wire cross-section from 95mm² to a maximum of 300mm². The maximum nominal operating current, Ie, for this terminal is rated at 630A. This terminal is versatile and can suitably connect to both band conductor and round wire. It can be used with double T profile and triple T profile and the contact is achieved via a cable block.

Contains 3 pieces

Downloads

Specifications

Busbar thickness (mm)
10 mm to 10 mm
Busbar width (mm)
30 mm to 30 mm
Suitable for
T-rail
Width clamp (mm)
48
Max. conductor cross section (mm²)
300
Max. rated operation current Ie (A)
630
Suitable for round conductor connection
Yes
Suitable for sector conductor connection
No
Suitable for strip conductor connection
Yes
