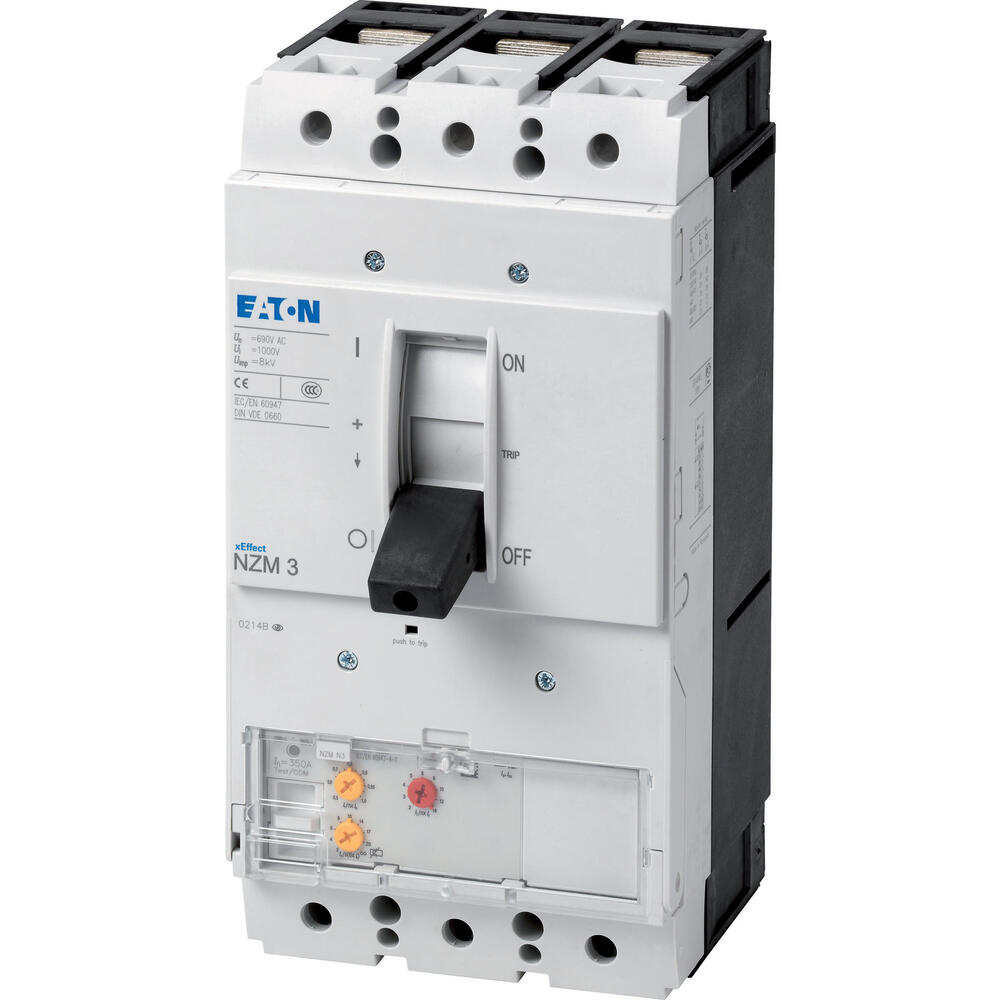

Eaton 3P Circuit Breaker 450A NZMH3-ME450 Motor Protection - 284469
The Eaton Industries MCCB motor protection switch, measuring 140x166x275mm, has an adjustable overload protection range of 225 - 450A. This built-in device has a nominal continuous current Iu of 450A and a screw connection for the main current circuit. It utilizes electronic shutdown technology. The NZM..-ME series circuit-breakers are succinctly designed to cater all applications with just four compact sizes. They are suitable for the IEC market and offer flexible mounting options due to their modular function groups. Key features include an electronic release for motor protection with phase failure sensitivity, r.m.s. value measurement, thermal memory, and an adjustable time delay setting to manage current peaks, ranging from 2-20 at 6xIr to infinity. Complies with IEC/EN 60947-4-1 and IEC/EN 60947-2 standards.
- Regular price
- $3,129.52 USD
We sell only to registered businesses
Description
The Eaton Industries MCCB motor protection switch, measuring 140x166x275mm, has an adjustable overload protection range of 225 - 450A. This built-in device has a nominal continuous current Iu of 450A and a screw connection for the main current circuit. It utilizes electronic shutdown technology. The NZM..-ME series circuit-breakers are succinctly designed to cater all applications with just four compact sizes. They are suitable for the IEC market and offer flexible mounting options due to their modular function groups. Key features include an electronic release for motor protection with phase failure sensitivity, r.m.s. value measurement, thermal memory, and an adjustable time delay setting to manage current peaks, ranging from 2-20 at 6xIr to infinity. Complies with IEC/EN 60947-4-1 and IEC/EN 60947-2 standards.
