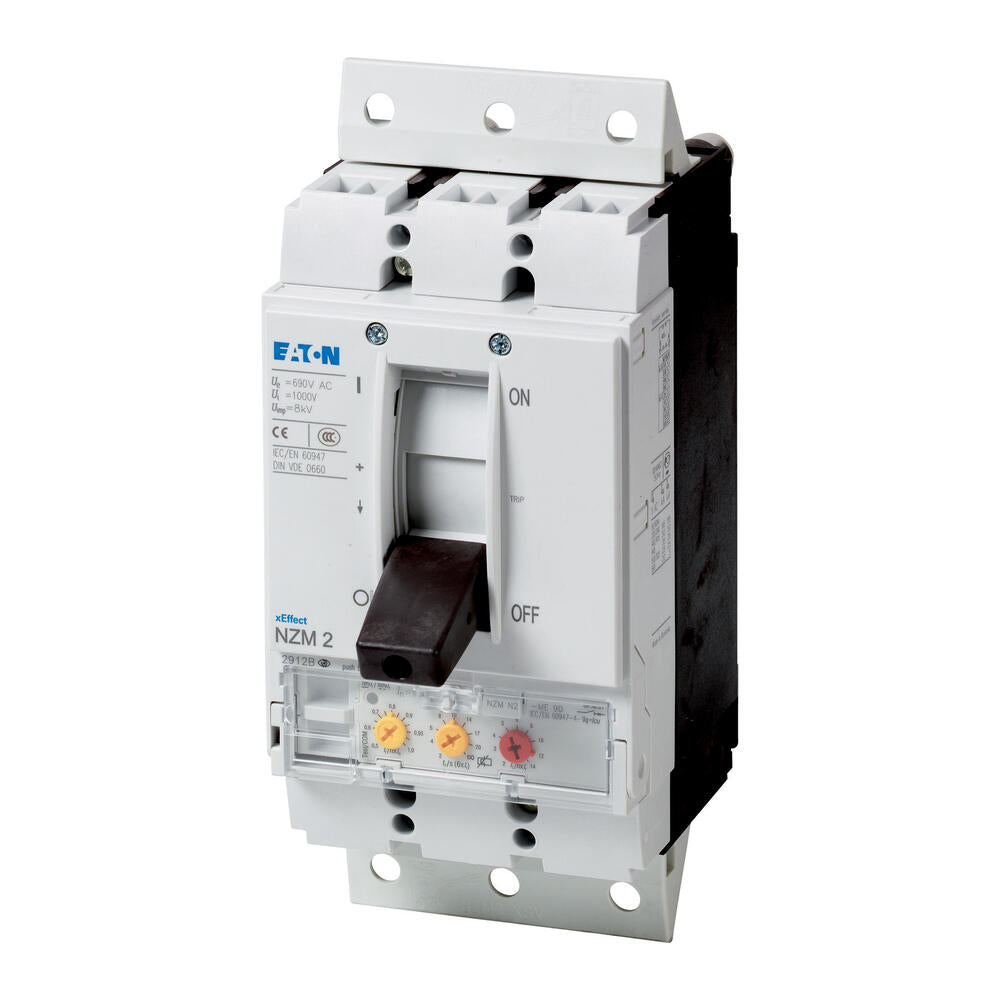

Eaton 3P 90A Circuit Breaker Plug-In Module NZMH2-ME90-SVE - 113348
The Eaton Industries MCCB motor protection switch comes with dimensions of 105x180x245mm and offers an adjustable range of overload protection from 45 - 90A. It features a nominal continuous current of 90A and a screw connection for the main current circuit. The device employs an electronic cut-off technique and is designed for in-device plug-in construction. Alongside this, the NZM..-ME series circuit-breakers cater to all needs via four compact sizes suitable for the IEC market, offering flexible installation owing to the modular function groups. It also features an electronic release for motor protection with phase failure sensitivity. Additional features include r.m.s. value measurement, thermal memory, adjustable time delay settings to accommodate tr:2-20 at 6xIr current peaks and infinity (without overload release). It also complies with IEC/EN 60947-4-1 and IEC/EN 60947-2 regulations.
- Regular price
- $1,148.84 USD
We sell only to registered businesses
Description
The Eaton Industries MCCB motor protection switch comes with dimensions of 105x180x245mm and offers an adjustable range of overload protection from 45 - 90A. It features a nominal continuous current of 90A and a screw connection for the main current circuit. The device employs an electronic cut-off technique and is designed for in-device plug-in construction. Alongside this, the NZM..-ME series circuit-breakers cater to all needs via four compact sizes suitable for the IEC market, offering flexible installation owing to the modular function groups. It also features an electronic release for motor protection with phase failure sensitivity. Additional features include r.m.s. value measurement, thermal memory, adjustable time delay settings to accommodate tr:2-20 at 6xIr current peaks and infinity (without overload release). It also complies with IEC/EN 60947-4-1 and IEC/EN 60947-2 regulations.
