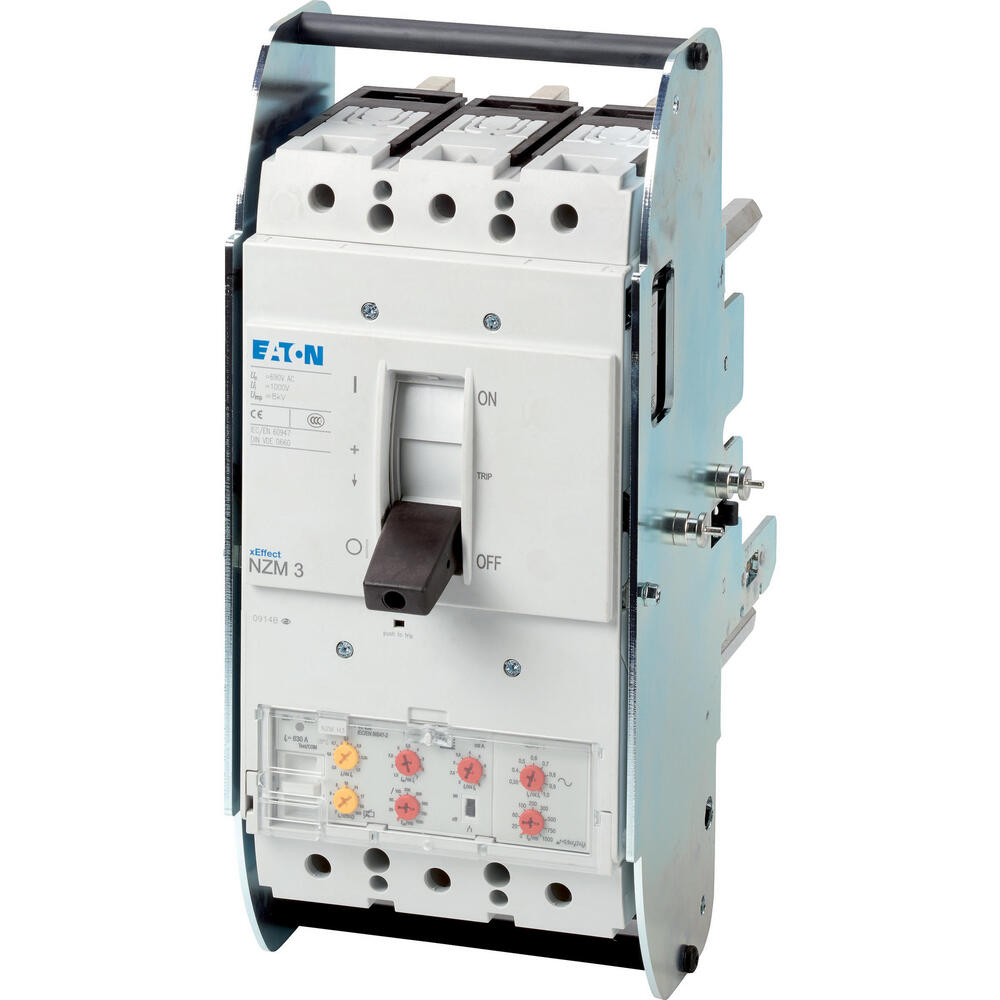

Eaton 3P 630A Circuit Breaker Withdrawable Unit 50KA NZMN3-VE630-T-AVE - 113531
Notice: This product will be discontinued in the future
The Eaton Industries MCCB circuit-breaker NZM3 is a three-pole device with a switching capacity of 50 kA at 400/415 V 50 Hz. It is rated for a nominal continuous current (In = Iu) of 630A and a nominal voltage of 690V. The overload protection setting range is from 315 to 630A, with a delayed short circuit setting range of 472 to 4410A, and an instantaneous short circuit setting range of 1260 to 5040A. This withdrawable unit features screw connections and is compliant with IEC standards. It's designed for system, cable, selectivity, and generator protective functions.
Notice: This product will be discontinued in the future
Description
The Eaton Industries MCCB circuit-breaker NZM3 is a three-pole device with a switching capacity of 50 kA at 400/415 V 50 Hz. It is rated for a nominal continuous current (In = Iu) of 630A and a nominal voltage of 690V. The overload protection setting range is from 315 to 630A, with a delayed short circuit setting range of 472 to 4410A, and an instantaneous short circuit setting range of 1260 to 5040A. This withdrawable unit features screw connections and is compliant with IEC standards. It's designed for system, cable, selectivity, and generator protective functions.
