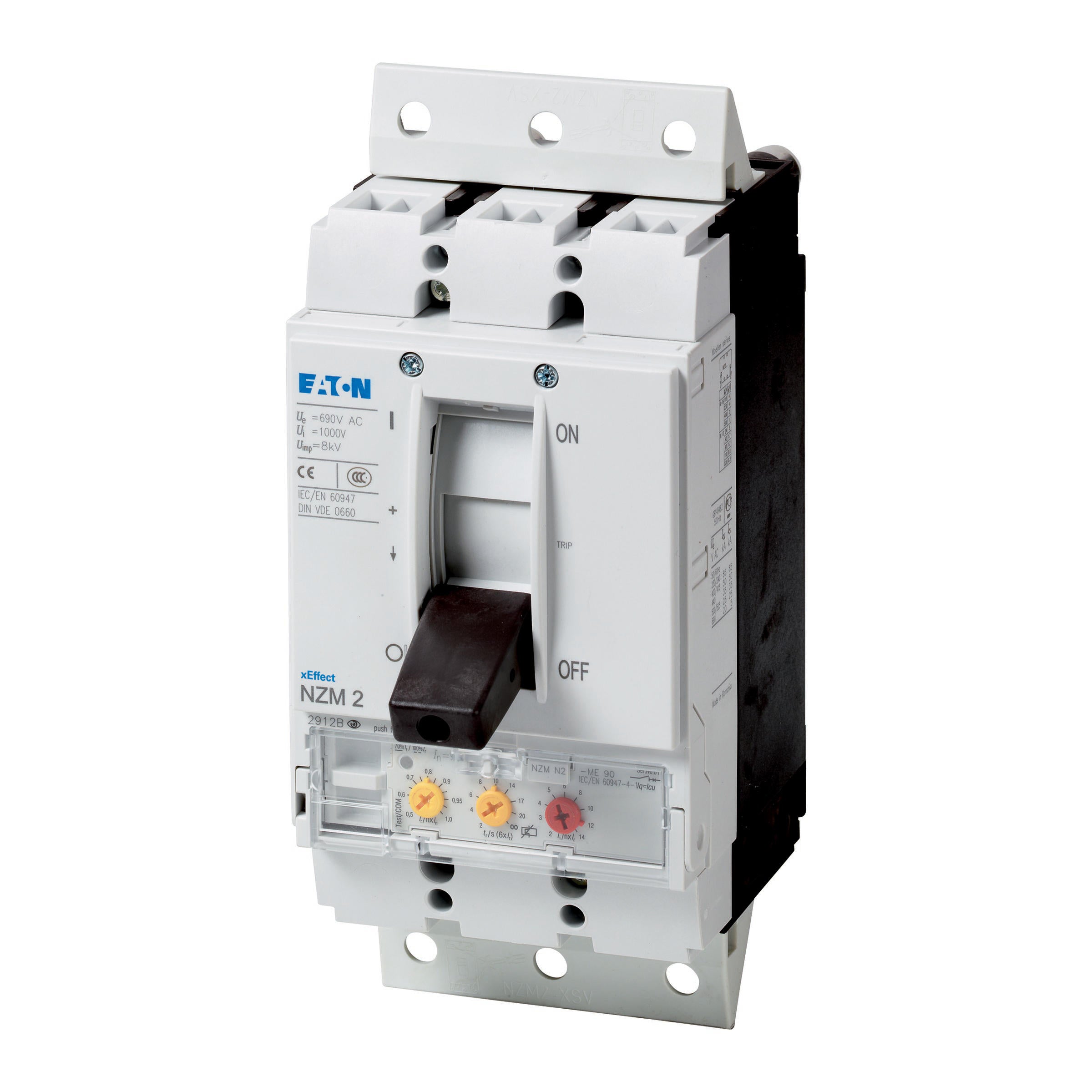

Eaton 3P 140A Plug-In Module Circuit Breaker NZM2 50kA - 113257
The Eaton Industries MCCB motor protection circuit breaker has dimensions of 105x180x245mm, with an overload adjustment range of 70-140A. It is a built-in device with a nominal continuous current Iu 140A, and features a screw connection for the main current circuit. The device operates with electronic trip technology. The NZM..-ME series circuit-breakers cater to all needs with just four compact sizes and modular function groups providing flexible mounting options. They also have an electronic release with phase failure sensitivity and comply with IEC/EN 60947-4-1 and IEC/EN 60947-2 standards. Other features include r.m.s. value measurement, thermal memory, and adjustable time delay setting to handle current peaks at 6xIr for 2-20 as well as infinity, without overload release.
- Regular price
- $1,369.04 USD
We sell only to registered businesses
Description
The Eaton Industries MCCB motor protection circuit breaker has dimensions of 105x180x245mm, with an overload adjustment range of 70-140A. It is a built-in device with a nominal continuous current Iu 140A, and features a screw connection for the main current circuit. The device operates with electronic trip technology. The NZM..-ME series circuit-breakers cater to all needs with just four compact sizes and modular function groups providing flexible mounting options. They also have an electronic release with phase failure sensitivity and comply with IEC/EN 60947-4-1 and IEC/EN 60947-2 standards. Other features include r.m.s. value measurement, thermal memory, and adjustable time delay setting to handle current peaks at 6xIr for 2-20 as well as infinity, without overload release.
