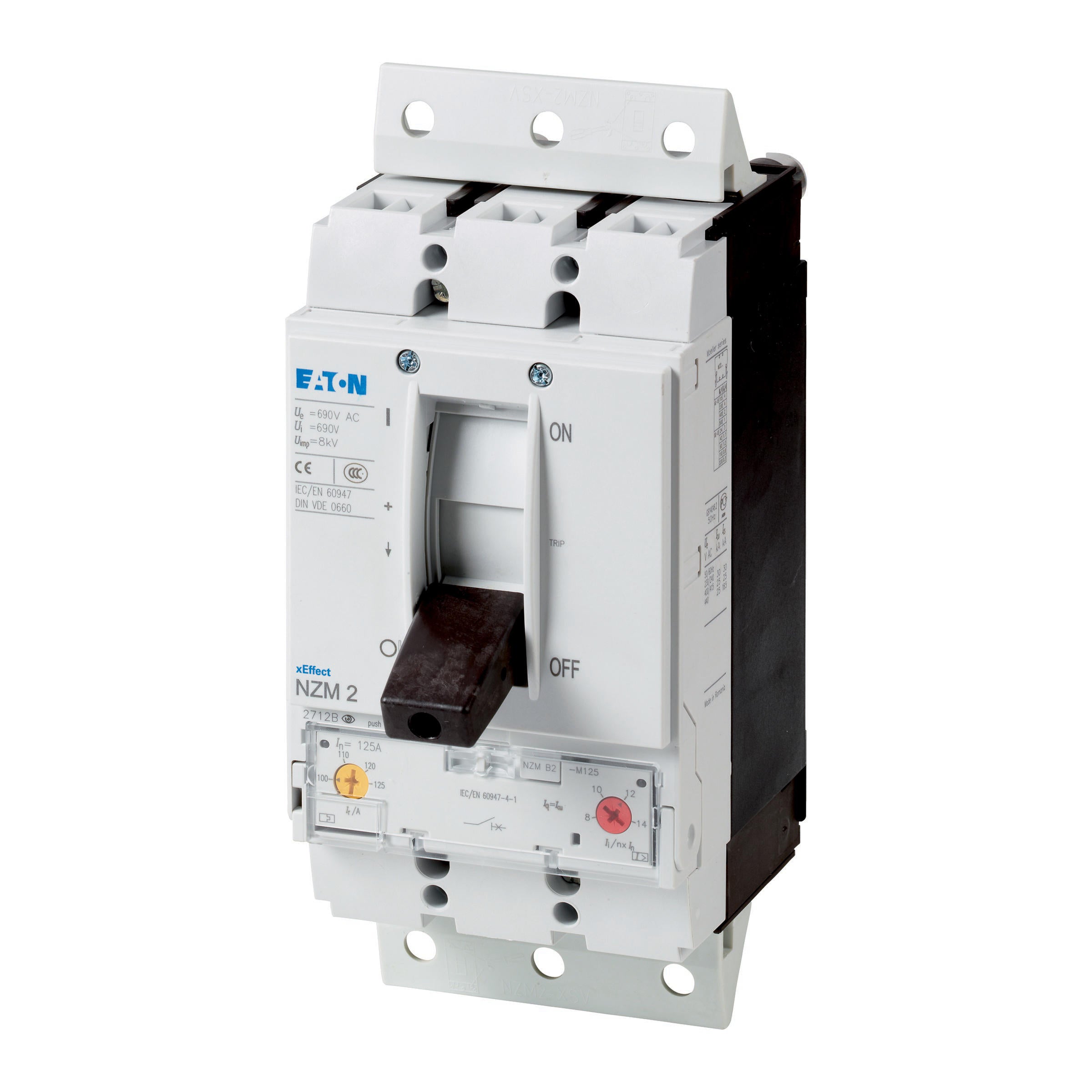

Eaton 3P 125A Circuit Breaker Plug-In Module 25kA NZM2 - 113196
The Eaton Industries MCCB motor protection switch, with dimensions of 105x180x245mm, has an overload protection setting range of 100 - 125A. The device design is an integrated insertion device with a nominal continuous current Iu of 125A. The main circuit connection method is a screw connection, implementing a thermomagnetic shutdown technology. This circuit breaker, part of the NZM..-M series, is suitable for the IEC market and comes in only four compact sizes to cover all applications. It's equipped with a modular function group, allowing for flexible mounting. The device features a thermomagnetic release for motor protection and satisfies all requirements of the switching category AC-3, complying with the standards IEC/EN 60947-4-1 and IEC/EN 60947-2. The trip class is 10A.
- Regular price
- $683.20 USD
We sell only to registered businesses
Description
The Eaton Industries MCCB motor protection switch, with dimensions of 105x180x245mm, has an overload protection setting range of 100 - 125A. The device design is an integrated insertion device with a nominal continuous current Iu of 125A. The main circuit connection method is a screw connection, implementing a thermomagnetic shutdown technology. This circuit breaker, part of the NZM..-M series, is suitable for the IEC market and comes in only four compact sizes to cover all applications. It's equipped with a modular function group, allowing for flexible mounting. The device features a thermomagnetic release for motor protection and satisfies all requirements of the switching category AC-3, complying with the standards IEC/EN 60947-4-1 and IEC/EN 60947-2. The trip class is 10A.
