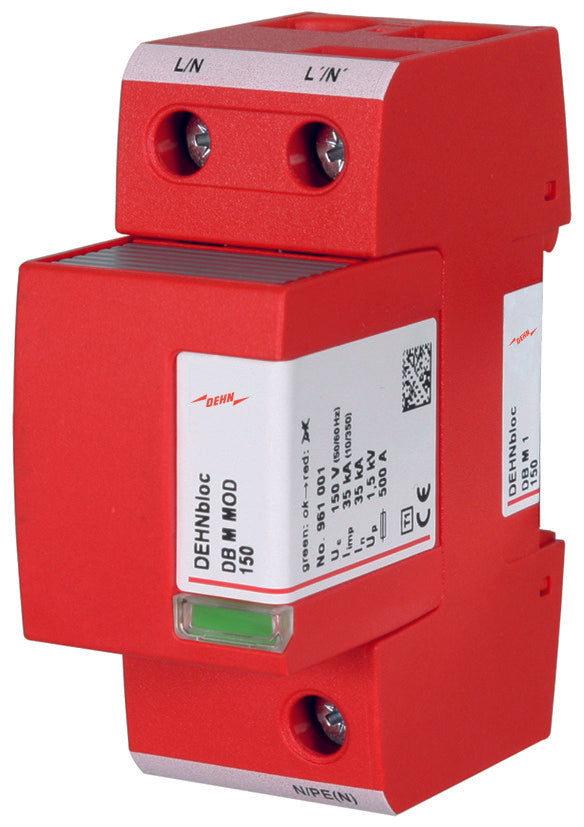

DEHNbloc M Lightning Current Arrester Type 1 150V - 961110
The DEHNbloc is a single-pole, modular and coordinated spark-gap-based lightning current arrester, type 1 in accordance with EN 61643-11. It is designed to protect low-voltage consumer installations from surges, including direct lightning strikes. It consists of a base part and a plug-in protection module which offers maximum system availability due to RADAX Flow follow current limitation. The arrester features a maximum cross section for flexible conductors of 35mm² and a maximum continuous voltage of AC 150V. Suitable for TN, TN-C, TN-C-S, and TN-S network forms, it can be mounted on a 35mm DIN-rail.
- Regular price
- $329.18 USD
We sell only to registered businesses
Description
The DEHNbloc is a single-pole, modular and coordinated spark-gap-based lightning current arrester, type 1 in accordance with EN 61643-11. It is designed to protect low-voltage consumer installations from surges, including direct lightning strikes. It consists of a base part and a plug-in protection module which offers maximum system availability due to RADAX Flow follow current limitation. The arrester features a maximum cross section for flexible conductors of 35mm² and a maximum continuous voltage of AC 150V. Suitable for TN, TN-C, TN-C-S, and TN-S network forms, it can be mounted on a 35mm DIN-rail.
