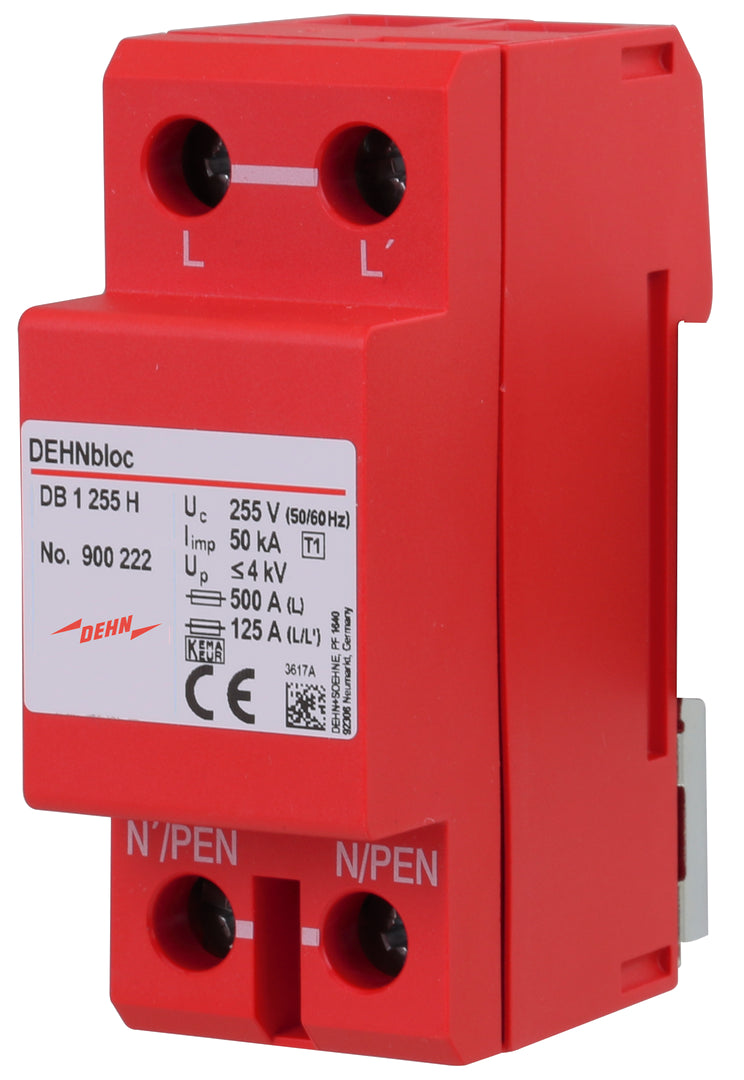

DEHNbloc 1 H 1-Pole 255V AC Lightning Current Arrester - 900222
Notice: This product is discontinued

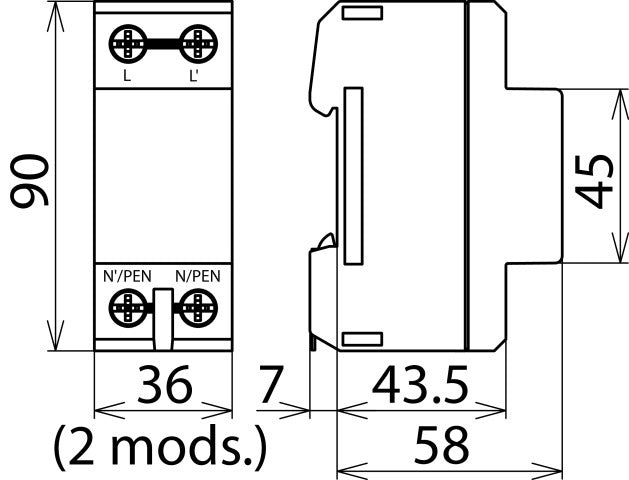

The DEHNbloc H is a modular, single-pole, spark-gap-based lightning current arrester that is type 1 according to EN 61643-11 standards. It utilizes RADAX Flow spark gap technology with high follow current limitation to protect low-voltage consumer's installations from surges and even direct lightning strikes. The device is designed for installation in accordance with the lightning protection zone concept, specifically at the boundaries from 0A-1, and offers a maximum continuous voltage of AC 255V. Its specifications include a DIN size 2 TE (Grid Dimension), a protection grade of IP20, and DIN-rail of 35mm, with a max flexible wire cross-section of 35mm² and a max rigid (solid/strand) wire cross-section of 50mm².
Notice: This product is discontinued
Description
The DEHNbloc H is a modular, single-pole, spark-gap-based lightning current arrester that is type 1 according to EN 61643-11 standards. It utilizes RADAX Flow spark gap technology with high follow current limitation to protect low-voltage consumer's installations from surges and even direct lightning strikes. The device is designed for installation in accordance with the lightning protection zone concept, specifically at the boundaries from 0A-1, and offers a maximum continuous voltage of AC 255V. Its specifications include a DIN size 2 TE (Grid Dimension), a protection grade of IP20, and DIN-rail of 35mm, with a max flexible wire cross-section of 35mm² and a max rigid (solid/strand) wire cross-section of 50mm².
