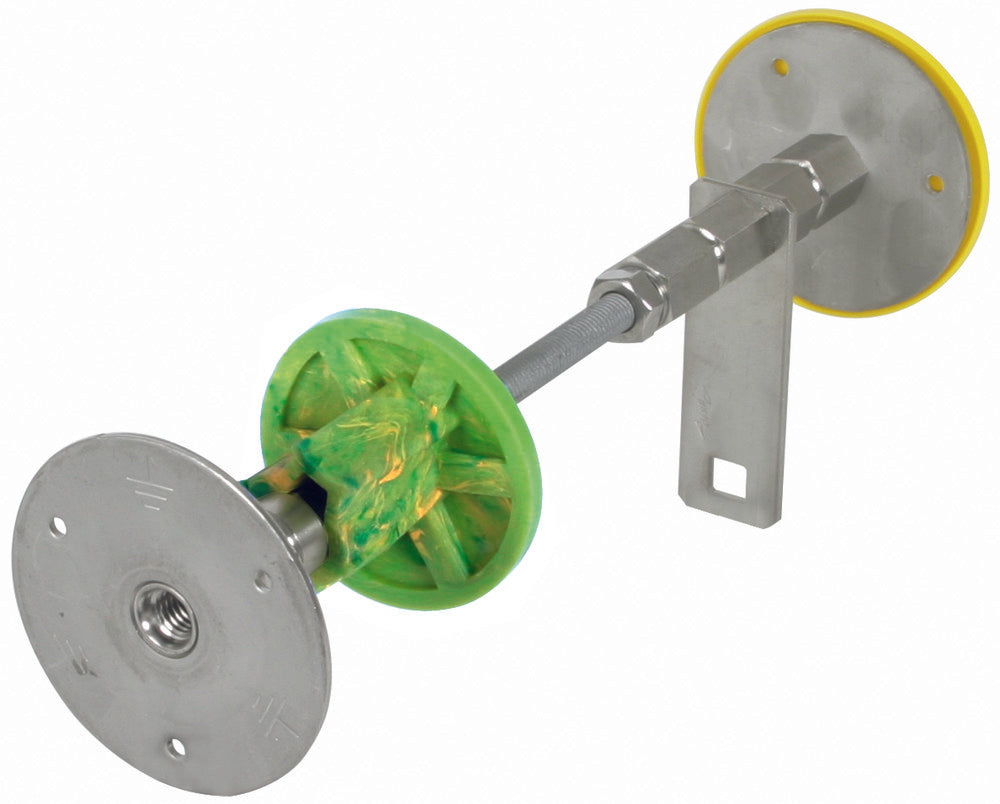

Dehn Waterproof Wall Bushing 200-300mm Stainless Steel - 478530
This item is a water-pressure-tight wall bushing designed for use with white tanks. It enables the passage of the earthing conductor or equipotential bonding conductor through concrete structures. The bushing comes with an adjustable M10 threaded rod and a type that allows for formwork installation with a water barrier and M10 / M12 double thread. It also includes a terminal clamp (St/tZn, 30 x 4 mm) outfitted with a square hole designed for connecting round conductors using a clamping piece or flat conductors utilizing a cross unit.
- Regular price
- $114.62 USD
We sell only to registered businesses
Description
This item is a water-pressure-tight wall bushing designed for use with white tanks. It enables the passage of the earthing conductor or equipotential bonding conductor through concrete structures. The bushing comes with an adjustable M10 threaded rod and a type that allows for formwork installation with a water barrier and M10 / M12 double thread. It also includes a terminal clamp (St/tZn, 30 x 4 mm) outfitted with a square hole designed for connecting round conductors using a clamping piece or flat conductors utilizing a cross unit.
