Dehn V4A Stainless Steel 20mm Connection Bracket Kit - 620915

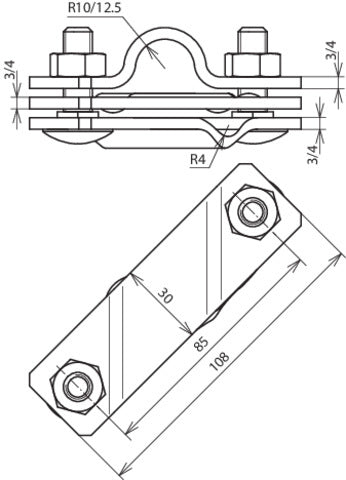

The Dehn connection clamp is constructed from 316 stainless steel (V4A), designed for deep grounding. The construct features an attachment saddle, with an earth connection diameter of 20mm. The clamp range for round conductors measures between 7 - 10mm, while for flat conductors the clamp width measures up to 40mm. The clamp range for cables is 35 - 95mm². Note that the surface is untreated. In accordance with EN 62561-1, the bracket is designed to connect round conductors, cables, and flat strips to earth rods; and its diagonal design with truss head screw is even suitable for uncut earth conductors.
- Regular price
- $25.16 USD
Description
The Dehn connection clamp is constructed from 316 stainless steel (V4A), designed for deep grounding. The construct features an attachment saddle, with an earth connection diameter of 20mm. The clamp range for round conductors measures between 7 - 10mm, while for flat conductors the clamp width measures up to 40mm. The clamp range for cables is 35 - 95mm². Note that the surface is untreated. In accordance with EN 62561-1, the bracket is designed to connect round conductors, cables, and flat strips to earth rods; and its diagonal design with truss head screw is even suitable for uncut earth conductors.
