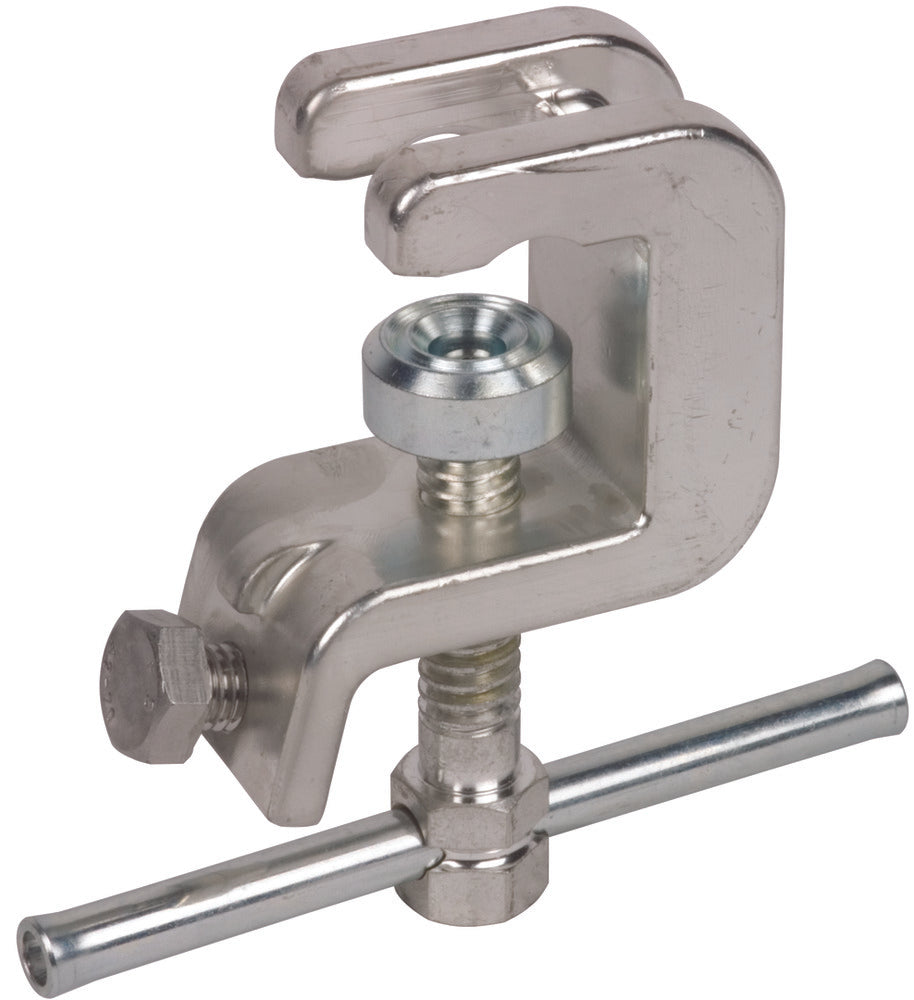

Dehn Universal Earthing Clamp K 30 FL 30 T 18mm With Tommy Bar - 774530
This is a universal earthing clamp featuring a tommy bar utilized for connecting the earthing cable to fixed ball points, T pins, round, and flat conductors. It complies with the EN/IEC 61230 (DIN VDE 0683-100) standards. It's fitted with an anti-rotation element, the PK1, to safeguard against undesired movement. Its maximum short-circuit current is 33.5kA and it is suitable for wire cross-sections ranging from 16 - 120mm². The clamp has a clamping range of 30mm and a ball locking point connection of 25mm. It's primarily used on the earthing side.
- Regular price
- $144.34 USD
Description
This is a universal earthing clamp featuring a tommy bar utilized for connecting the earthing cable to fixed ball points, T pins, round, and flat conductors. It complies with the EN/IEC 61230 (DIN VDE 0683-100) standards. It's fitted with an anti-rotation element, the PK1, to safeguard against undesired movement. Its maximum short-circuit current is 33.5kA and it is suitable for wire cross-sections ranging from 16 - 120mm². The clamp has a clamping range of 30mm and a ball locking point connection of 25mm. It's primarily used on the earthing side.
