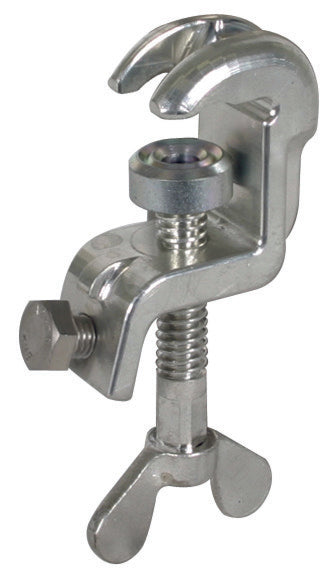

Dehn Universal Earthing Clamp K 20/25 Fl 20 T 15mm With Wing Screw - 774034

Dehn Universal Earthing Clamp K 20/25 Fl 20 T 15mm With Wing Screw - 774034
Dehn Universal Earthing Clamp K 20/25 Fl 20 T 15mm With Wing Screw - 774034
Dehn Universal Earthing Clamp K 20/25 Fl 20 T 15mm With Wing Screw - 774034
Dehn Universal Earthing Clamp K 20/25 Fl 20 T 15mm With Wing Screw - 774034
Image may vary slightly
See specifications for accurate information.
Reference: E3P2T
Brand: DEHN
Mfr. Part: 774034

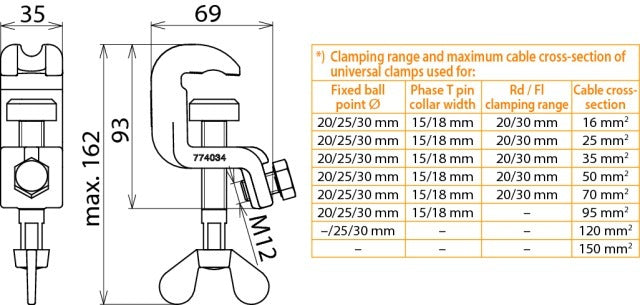

The Dehn earthing clamp is designed as a universal connection element for earth-side applications. It can withstand a maximum short-circuit current of 33.5kA and supports a wire cross-section of 16 - 120mm². The clamp offers a clamping range of 20mm and is suitable for connection to a fixed ball point of 25mm. It is designed with an anti-rotation feature and can be used to connect the earthing cable to fixed ball points, T pins, round and flat conductors. It is compliant with EN/IEC 61230 (DIN VDE 0683-100).

View all
Note: product cannot be returned
€138,51
incl VAT
A VAT (value-added tax) is a goods and service tax that pertains to the European Union (EU). We, Tameson, are required by law to collect VAT for orders within the EU for customers that do not supply us with their VAT number.
€110,81
excl VAT
In stock Ships in 11d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 11 days. Up to 28 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.

Customers rate us: 4.92 / 5

664 reviews at TrustedShops

Description
Specifications
Downloads

Description

The Dehn earthing clamp is designed as a universal connection element for earth-side applications. It can withstand a maximum short-circuit current of 33.5kA and supports a wire cross-section of 16 - 120mm². The clamp offers a clamping range of 20mm and is suitable for connection to a fixed ball point of 25mm. It is designed with an anti-rotation feature and can be used to connect the earthing cable to fixed ball points, T pins, round and flat conductors. It is compliant with EN/IEC 61230 (DIN VDE 0683-100).

Downloads

Product datasheet (EN)
pdf
Download
Compliance and Certification (EN)
pdf
Download

Specifications
