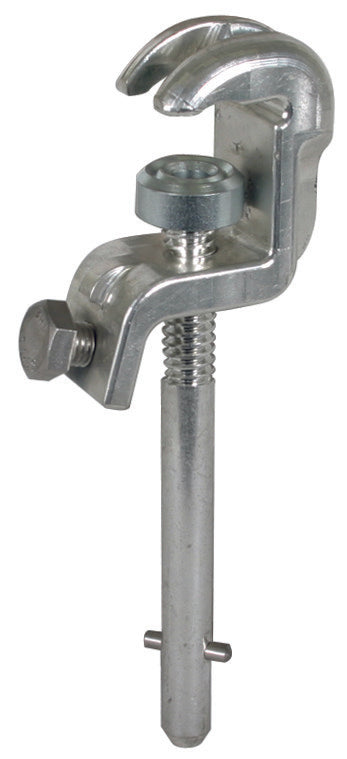

Dehn Universal Clamp D 20/25mm T 15mm With Long T Pin Shaft - 773236

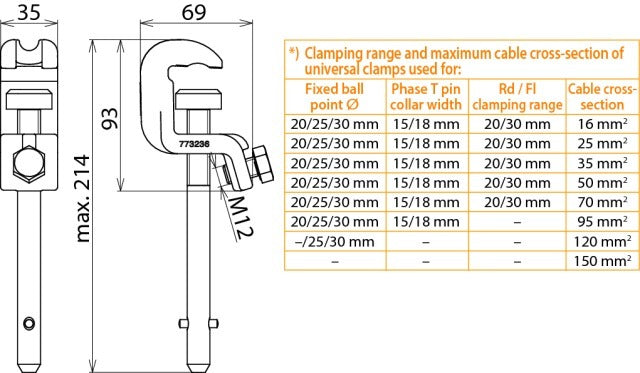

This is a universal clamp with a long T pin shaft designed for use as a phase or earth connecting element. The element complies with EN/IEC 61230 (DIN VDE 0683-100) and is suitable for fixed ball points and T points, as well as for flat and round conductors. It is used for connecting phase cables of earthing and short-circuiting devices. It has a maximum short-circuit current of 33.5kA and accommodates a wire cross-section of 16 - 120mm². Clamp range is 20mm and the ball affixing method is 25mm. It also features PK1 anti-rotation element and the control rod spindle attachment with a transverse pin.
- Regular price
- $120.87 USD
We sell only to registered businesses
Description
This is a universal clamp with a long T pin shaft designed for use as a phase or earth connecting element. The element complies with EN/IEC 61230 (DIN VDE 0683-100) and is suitable for fixed ball points and T points, as well as for flat and round conductors. It is used for connecting phase cables of earthing and short-circuiting devices. It has a maximum short-circuit current of 33.5kA and accommodates a wire cross-section of 16 - 120mm². Clamp range is 20mm and the ball affixing method is 25mm. It also features PK1 anti-rotation element and the control rod spindle attachment with a transverse pin.
