Dehn Unisnap Roof Conditioner With Embossed Brace - 204179 [2 pieces]

Dehn Unisnap Roof Conditioner With Embossed Brace - 204179 [2 pieces]
Dehn Unisnap Roof Conditioner With Embossed Brace - 204179 [2 pieces]
Dehn Unisnap Roof Conditioner With Embossed Brace - 204179 [2 pieces]
Dehn Unisnap Roof Conditioner With Embossed Brace - 204179 [2 pieces]
Image may vary slightly
See specifications for accurate information.
Reference: E3NTC-X2
Brand: DEHN
Mfr. Part: 204179

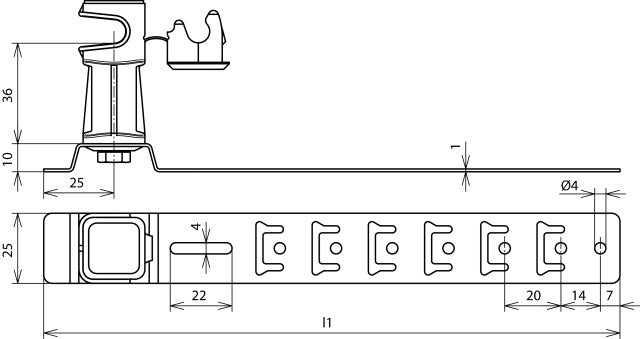

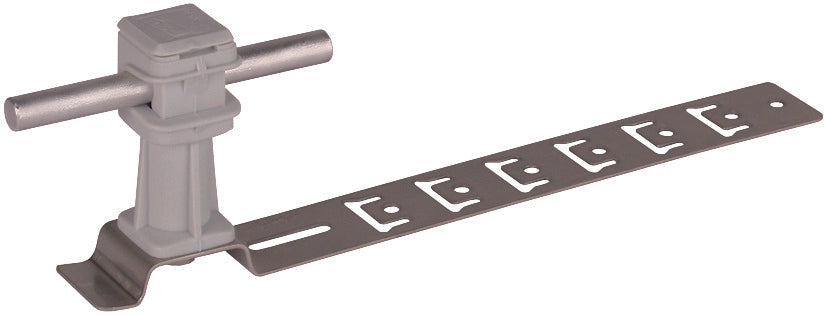

The UNIsnap roof conductor holder is designed for lightning protection, specifically for fixing air-termination and down conductors on roofs. It features the DEHNsnap conductor holder, a mechanism for hanging with a clip clamp. With pre-punched points for bending and hooking into the roof tiles or battens, the holder is 36mm in height and facilitates loose conductor routing. The holder carrier has a length of 205mm and is made from 304 stainless steel. The holder itself is made from weather-resistant, UV-stabilized, and halogen-free plastic. It is suitable for use on sloping roof surfaces and is designed to accommodate a nominal conductor diameter of 8mm.

Contains 2 pieces

View all
Note: product cannot be returned
$9.05
excl VAT
In stock +11 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 11 days. Up to 50 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 13 - 14 business days

Customers rate us: 4.98 / 5

506 reviews at TrustedShops

Description
Specifications
Downloads

Description

The UNIsnap roof conductor holder is designed for lightning protection, specifically for fixing air-termination and down conductors on roofs. It features the DEHNsnap conductor holder, a mechanism for hanging with a clip clamp. With pre-punched points for bending and hooking into the roof tiles or battens, the holder is 36mm in height and facilitates loose conductor routing. The holder carrier has a length of 205mm and is made from 304 stainless steel. The holder itself is made from weather-resistant, UV-stabilized, and halogen-free plastic. It is suitable for use on sloping roof surfaces and is designed to accommodate a nominal conductor diameter of 8mm.

Downloads

Product datasheet (EN)
pdf
Download

Specifications

Mounting type conductor
With snap clamp
Conductor diameter (mm)
8 mm to 8 mm
Application
Roof surface pitched
Mounting method
To hang in
Material of holder
Plastic
Material of carrier
Stainless steel V2A
Length carrier (mm)
205
Assembly height conductor holder (mm)
36
