Dehn Uni Earthing Clamp With M8 Screw 4-50MM2 For Rd 8-10MM - 540250

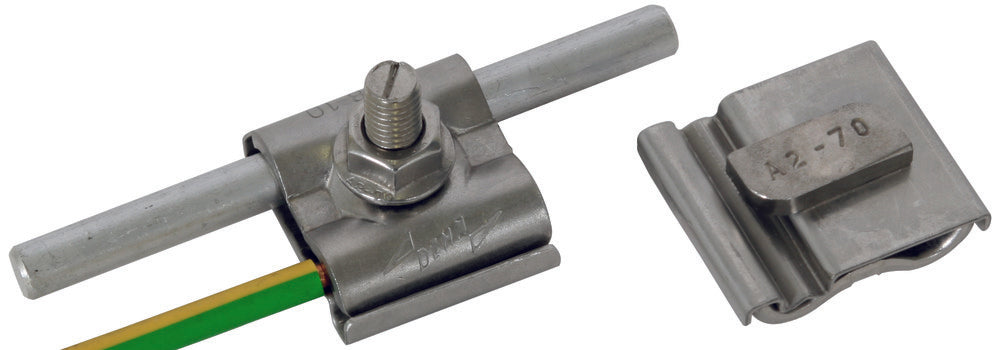

The Dehn UNI earthing clamp is made of stainless steel and is suitable for connection cross-sections of 4 - 50mm² and a clamping range for round conductors of 8 - 10mm. These clamps are ideal for integrating mounting systems, such as PV installations, into the functional equipotential bonding/functional earthing, according to IEC/EN 62305-3. The stainless steel contact plate allows different conductor materials, including copper, aluminum, and stainless steel, to be connected to standard mounting systems without the risk of contact corrosion. The double clamp design enables easy, quick interconnection of profiles through feed-through wiring.
- Regular price
- $7.91 USD
We sell only to registered businesses
Description
The Dehn UNI earthing clamp is made of stainless steel and is suitable for connection cross-sections of 4 - 50mm² and a clamping range for round conductors of 8 - 10mm. These clamps are ideal for integrating mounting systems, such as PV installations, into the functional equipotential bonding/functional earthing, according to IEC/EN 62305-3. The stainless steel contact plate allows different conductor materials, including copper, aluminum, and stainless steel, to be connected to standard mounting systems without the risk of contact corrosion. The double clamp design enables easy, quick interconnection of profiles through feed-through wiring.
