Dehn Uni Disconnect Clamp Stainless Steel 200kA With Intermediate Plate - 459200
Notice: This product is discontinued

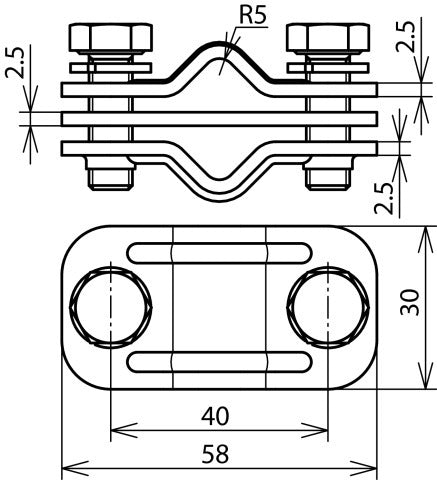

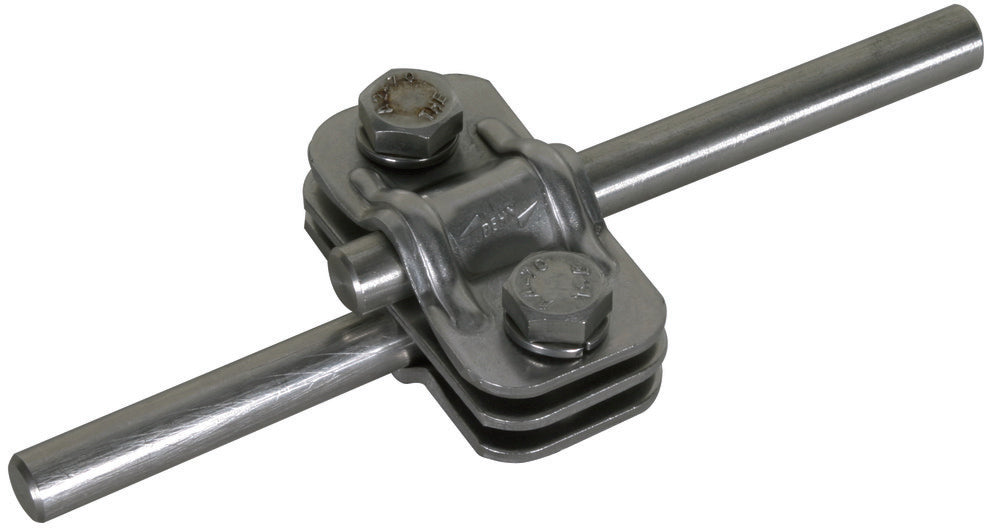

This is a disconnecting clamp designed for establishing a connection between an air-termination rod or earth entry and a round conductor. The clamp has been tested and has a lightning current carrying capacity of up to 200 kA (10/350 μs) according to EN 62561-1 standards. The type of clamp is equipped with a spring washer and an intermediate plate that are suitable for both round and flat conductors. It fits round conductors with diameters of 10mm, flat conductors with diameters of 30mm, and a second round conductor with a diameter of 10mm. The clamp is made from 304 (V2A) stainless steel and does not feature any surface protection, thus it remains untreated.
Notice: This product is discontinued
Description
This is a disconnecting clamp designed for establishing a connection between an air-termination rod or earth entry and a round conductor. The clamp has been tested and has a lightning current carrying capacity of up to 200 kA (10/350 μs) according to EN 62561-1 standards. The type of clamp is equipped with a spring washer and an intermediate plate that are suitable for both round and flat conductors. It fits round conductors with diameters of 10mm, flat conductors with diameters of 30mm, and a second round conductor with a diameter of 10mm. The clamp is made from 304 (V2A) stainless steel and does not feature any surface protection, thus it remains untreated.
