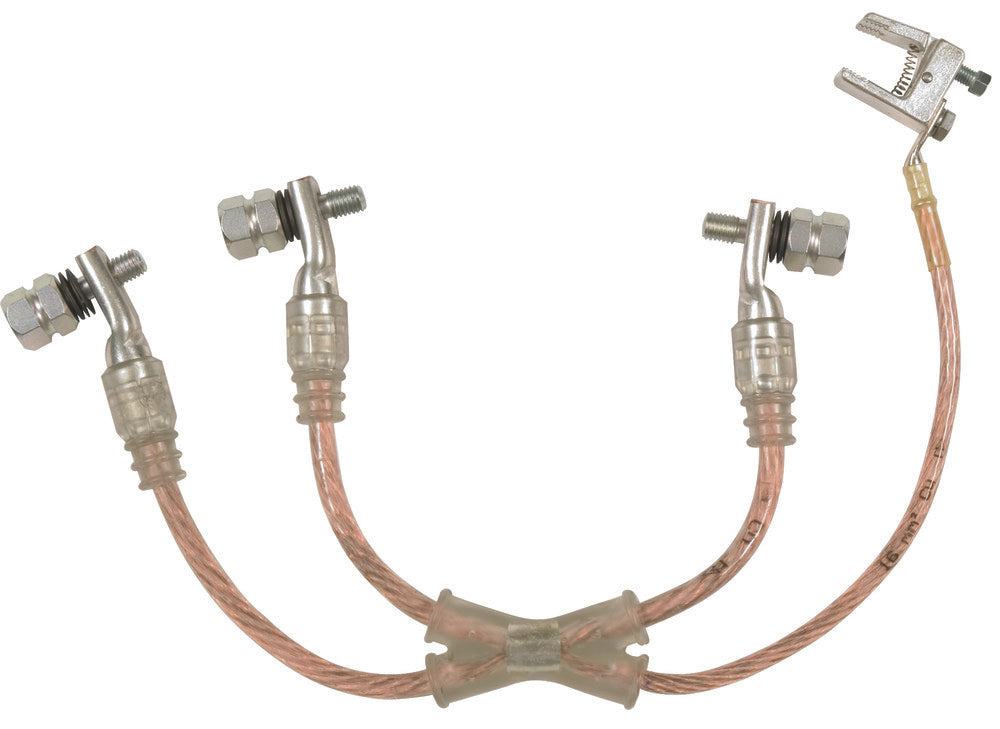

Dehn Three-Pole Earthing Short-Circuiting Device TI 16mm M10 Bolt - VSB29AH
The Dehn TI is an earthing and short-circuiting device, comprised of partly insulated, spring-loaded earth clamp with a clamping range of up to 24mm, and an adjustable handle for fixing. The phase cable end features screw-on cable lugs with an M10 hexagon pin, designed to be screwed onto earthing cartridges with an M10 connection of service entrance boxes. This device caters to a cable length of 280mm for the earth side and 190mm and 140mm for the phase side, with a wire cross-section of 16mm² for both. Other cable lengths can be customized via the earthing and short-circuiting configurator available on the Dehn website.
- Regular price
- $517.19 USD
We sell only to registered businesses
Description
The Dehn TI is an earthing and short-circuiting device, comprised of partly insulated, spring-loaded earth clamp with a clamping range of up to 24mm, and an adjustable handle for fixing. The phase cable end features screw-on cable lugs with an M10 hexagon pin, designed to be screwed onto earthing cartridges with an M10 connection of service entrance boxes. This device caters to a cable length of 280mm for the earth side and 190mm and 140mm for the phase side, with a wire cross-section of 16mm² for both. Other cable lengths can be customized via the earthing and short-circuiting configurator available on the Dehn website.
