Dehn Three-Pole Earthing And Short-Circuiting Device VI 25mm For Phase T P - VMRSJWD

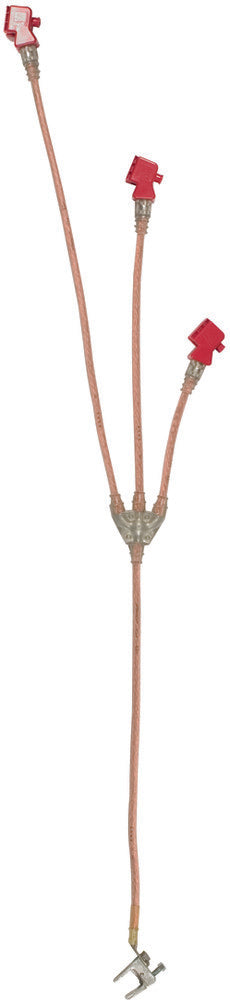

The Dehn VI earthing and short-circuiting device is made of copper and designed for cable use, featuring 3 poles. It includes a miscellaneous earthing side connection part and a miscellaneous phase side connection part. The wire cross-section on the earthing side is 25mm², and on the phase side also 25mm². The earth wire length is 500mm, and the phase wire has lengths of 200mm and 400mm, respectively. It is fully insulated and shock-proof, equipped with a spring-loaded earth clamp having a clamping range up to 24 mm. This can be installed via an adjustable handle (part number 745 921). It is suitable for cable distribution cabinets and variants can be configured online at www.dehn.de/en/euk.
- Regular price
- $521.17 USD
We sell only to registered businesses
Description
The Dehn VI earthing and short-circuiting device is made of copper and designed for cable use, featuring 3 poles. It includes a miscellaneous earthing side connection part and a miscellaneous phase side connection part. The wire cross-section on the earthing side is 25mm², and on the phase side also 25mm². The earth wire length is 500mm, and the phase wire has lengths of 200mm and 400mm, respectively. It is fully insulated and shock-proof, equipped with a spring-loaded earth clamp having a clamping range up to 24 mm. This can be installed via an adjustable handle (part number 745 921). It is suitable for cable distribution cabinets and variants can be configured online at www.dehn.de/en/euk.
