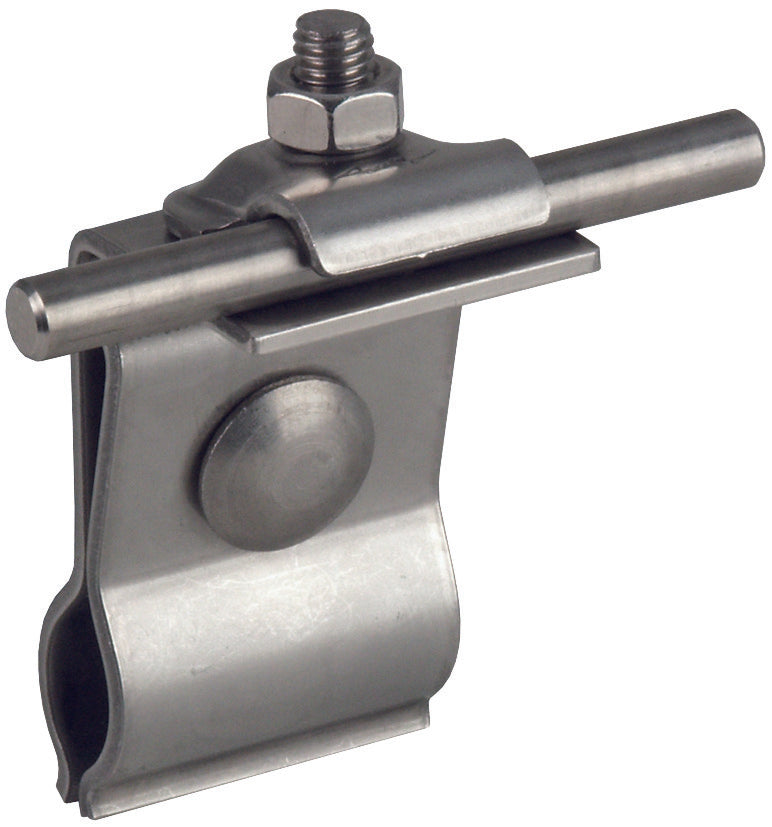

Dehn StSt Roof Conductor Holder For Metal Roofs - 223010

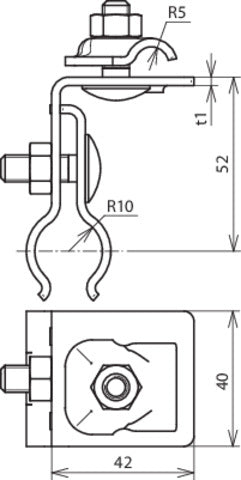

The roof conductor holder is designed for securing additional air-termination systems like air-termination conductors or rods on metal roofs, specifically roofs with a round standing seam. It comes with a clamping piece and when utilized with another roof conductor holder, which has been tested for the specific roof profile, it provides a lightning current carrying capability of 100 kA (10/350 µs). This holder is screwable, and the attachment method of the conductor involves a screw clamp. It has a building height of 52mm, a carrier length of 42mm, and can accommodate a nominal conductor diameter of 6 - 10mm. Both the holder and carrier are made from RVS 304 (V2A) stainless steel.
- Regular price
- $11.93 USD
We sell only to registered businesses
Description
The roof conductor holder is designed for securing additional air-termination systems like air-termination conductors or rods on metal roofs, specifically roofs with a round standing seam. It comes with a clamping piece and when utilized with another roof conductor holder, which has been tested for the specific roof profile, it provides a lightning current carrying capability of 100 kA (10/350 µs). This holder is screwable, and the attachment method of the conductor involves a screw clamp. It has a building height of 52mm, a carrier length of 42mm, and can accommodate a nominal conductor diameter of 6 - 10mm. Both the holder and carrier are made from RVS 304 (V2A) stainless steel.
