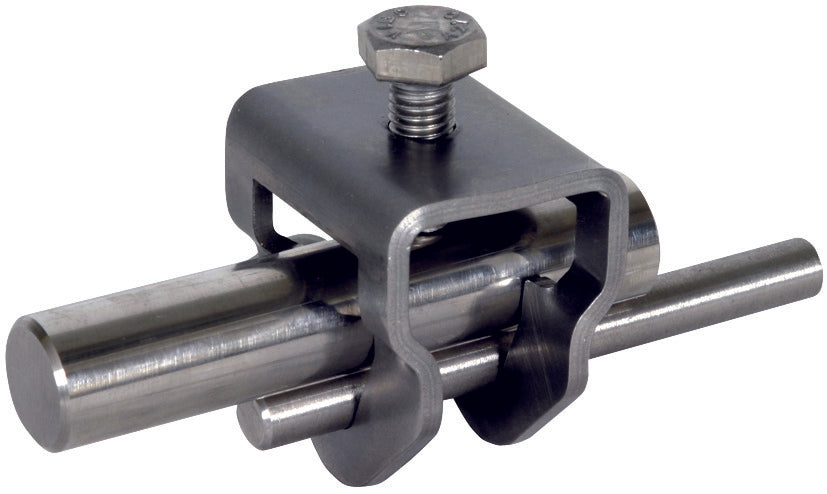

Dehn Stainless Steel Terminal Clamp For Earth Rods 20mm - 630129
The Dehn connection clamp is designed for deep grounding applications, made from Stainless Steel 316 (V4A) with a clamp designed for connection. The diameter of the earth connection is 20mm, clamping range of the round conductor is 10mm, flat conductor clamping width up to 30mm and the cable clamping range is 70mm². The surface protection is not treated. This single-screw connection clamp adheres to EN 62561-1 standards, and can be used to connect round conductors, flat conductors, or cables to earth rods. The type is suitable for cross and parallel connections.
- Regular price
- $14.04 USD
Description
The Dehn connection clamp is designed for deep grounding applications, made from Stainless Steel 316 (V4A) with a clamp designed for connection. The diameter of the earth connection is 20mm, clamping range of the round conductor is 10mm, flat conductor clamping width up to 30mm and the cable clamping range is 70mm². The surface protection is not treated. This single-screw connection clamp adheres to EN 62561-1 standards, and can be used to connect round conductors, flat conductors, or cables to earth rods. The type is suitable for cross and parallel connections.
