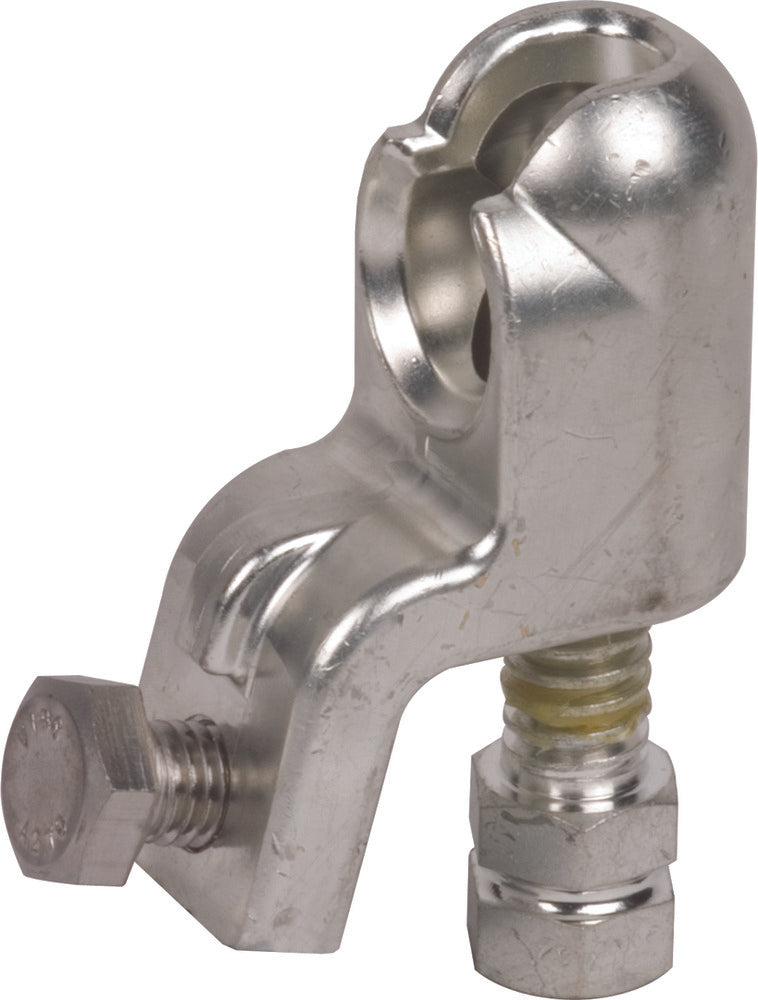

Dehn Rigid Ball Head Cap With Hexagon Shaft For Conductors - 772310
This product is a rigid ball head cap with a hexagon shaft. It is intended for use either as a phase or earth connecting element, as per EN/IEC 61230 (DIN VDE 0683-100) standards. It's designed for fixed ball points for attachment to earthing and short-circuiting devices. The product offers a maximum short-circuit current of 33.5kA and is suitable for a wire cross-section of 16 - 120mm². It also features a PK1 anti-rotation element and provides secure attachment of the operating rod spindle with a hexagon. The connection method is a rigid ball point of 20mm.
- Regular price
- $102.36 USD
Description
This product is a rigid ball head cap with a hexagon shaft. It is intended for use either as a phase or earth connecting element, as per EN/IEC 61230 (DIN VDE 0683-100) standards. It's designed for fixed ball points for attachment to earthing and short-circuiting devices. The product offers a maximum short-circuit current of 33.5kA and is suitable for a wire cross-section of 16 - 120mm². It also features a PK1 anti-rotation element and provides secure attachment of the operating rod spindle with a hexagon. The connection method is a rigid ball point of 20mm.
