Image may vary slightly
See specifications for accurate information.
Reference: E3MNH-X2
Brand: DEHN
Mfr. Part: 308132

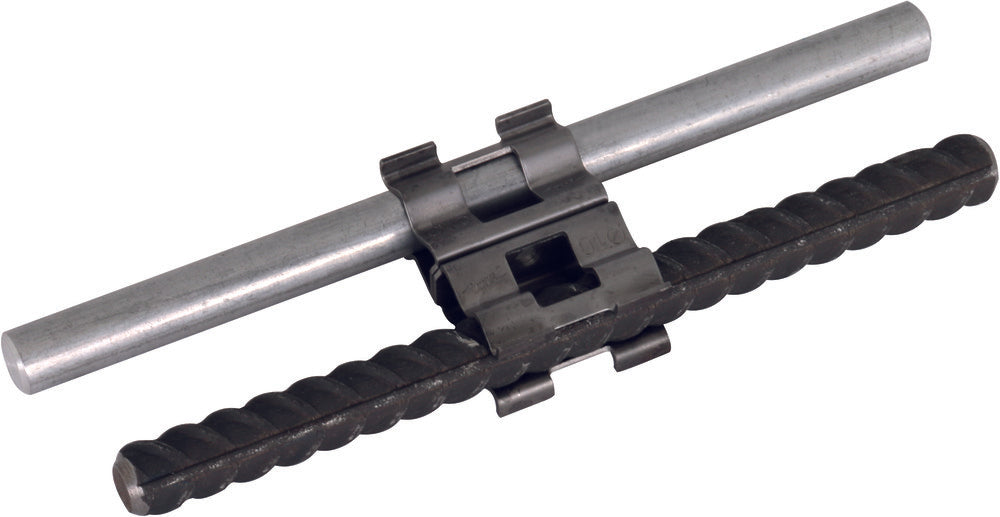

The DEHNclip rebar clamp is designed for swift, effortless and safe connection of earthing materials with reinforcement. This tool-free connector allows for the parallel connection of round conductors, with the diameters up to 10mm each. Manufactured from steel and untreated for surface protection, it adheres to EN 62561-1 standards. This makes it ideal for linking the reinforcing steel mesh or reinforcement bars with round conductors. Despite the lack of securing screws, the DEHNclip is lightning current tested with a capacity of 2.4kA for 10/350 µs, ensuring reliable performance during lightning occurrences.

Contains 2 pieces

View all
Note: product cannot be returned
$6.54 USD
excl VAT
In stock Ships in 11d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 11 days. Up to 50 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95 USD
Free for orders > $390.00 USD
Expected delivery in 13 - 14 business days

We sell only to registered businesses

Customers rate us: 4.95 / 5

552 reviews at TrustedShops

Description
Specifications
Downloads

Description

The DEHNclip rebar clamp is designed for swift, effortless and safe connection of earthing materials with reinforcement. This tool-free connector allows for the parallel connection of round conductors, with the diameters up to 10mm each. Manufactured from steel and untreated for surface protection, it adheres to EN 62561-1 standards. This makes it ideal for linking the reinforcing steel mesh or reinforcement bars with round conductors. Despite the lack of securing screws, the DEHNclip is lightning current tested with a capacity of 2.4kA for 10/350 µs, ensuring reliable performance during lightning occurrences.

Downloads

Product data sheet (EN)
pdf
Download

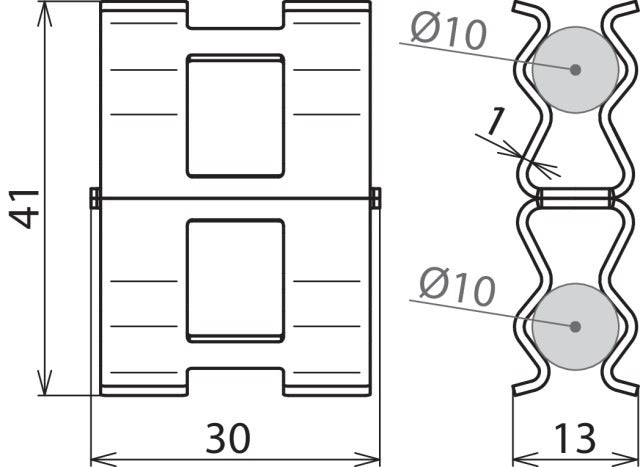

Specifications

Type of connector
Parallel connector
Diameter round conductor 1
10..10 mm
Diameter round conductor 2
10..10 mm
Materiali
Steel
Surface protectioni
Untreated
Type of fastening screws
Screw less
Lightning current load-bearing capacity (10/350 µs)
2.4 kA
