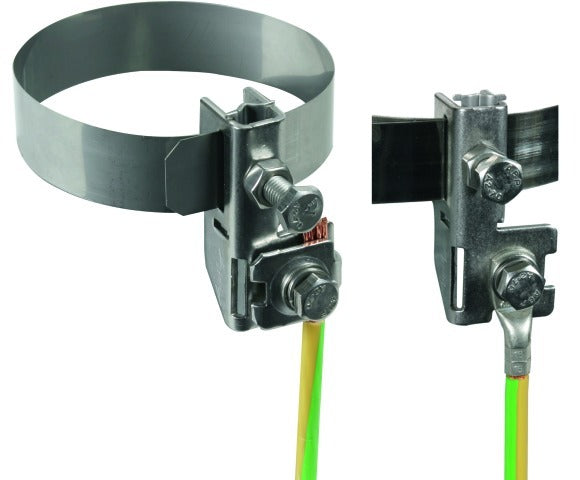

DEHN Rain Pipe clamp For Lightning Protection - 540104

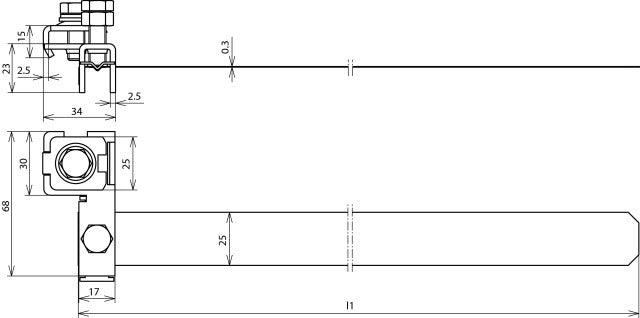

Pipe clamp, secured against self-loosening, according to EN 62561-1, for integrating pipes into the protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 (DIN VDE 0100 Part 410/540) and lightning equipotential bonding according to IEC/EN 62305-3. It comes complete with a continuously adjustable stainless steel tensioning strap to connect one conductor with a diameter of 10mm or one to two conductors with diameters of 6-8mm, or 4-50 mm² (solid or stranded).
- Regular price
- $19.72 USD
We sell only to registered businesses
Description
Pipe clamp, secured against self-loosening, according to EN 62561-1, for integrating pipes into the protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 (DIN VDE 0100 Part 410/540) and lightning equipotential bonding according to IEC/EN 62305-3. It comes complete with a continuously adjustable stainless steel tensioning strap to connect one conductor with a diameter of 10mm or one to two conductors with diameters of 6-8mm, or 4-50 mm² (solid or stranded).
