Reference: E3JA5
Brand: DEHN
Mfr. Part: 909300

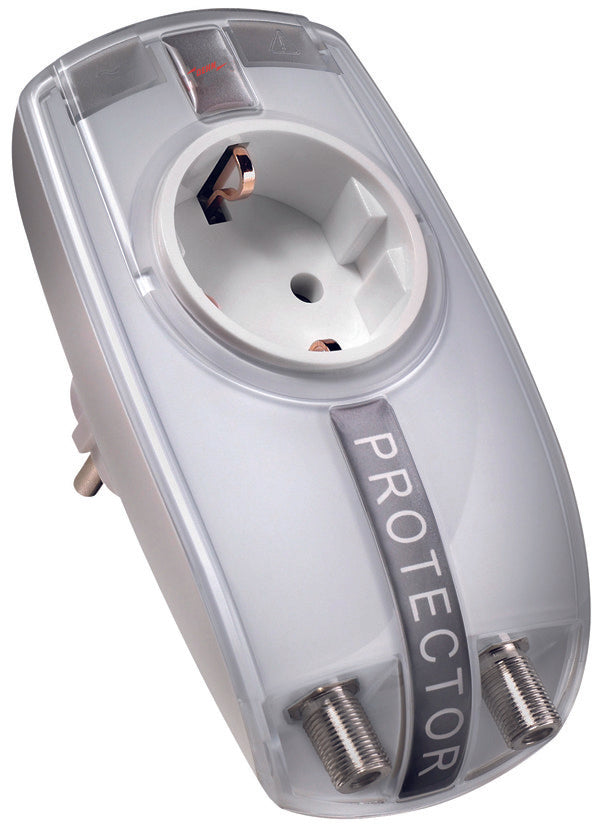

The DEHN DEHNprotector is a white surge protective device with applications for the power and antenna side of TV, radio, or SAT receivers. The device features one grounded socket, an on/off switch, and a rectangular housing shape. With an IP20 degree of protection, it can handle a wire cross-section of 2.5mm². Other functionality includes visual indications for operating status and faults, and an integrated child lock for additional safety. This unit is intended for use in protecting against electrical surges.

View all
Note: product cannot be returned
$157.80
excl VAT
In stock +11 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 11 days. Up to 23 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.
Shipping to United States: $14.95
Free for orders > $390.00
Expected delivery in 13 - 14 business days

Customers rate us: 4.98 / 5

509 reviews at TrustedShops

Description
Specifications
Downloads

Description

The DEHN DEHNprotector is a white surge protective device with applications for the power and antenna side of TV, radio, or SAT receivers. The device features one grounded socket, an on/off switch, and a rectangular housing shape. With an IP20 degree of protection, it can handle a wire cross-section of 2.5mm². Other functionality includes visual indications for operating status and faults, and an integrated child lock for additional safety. This unit is intended for use in protecting against electrical surges.

Downloads

Product datasheet (EN)
pdf
Download
Compliance and Certification (EN)
pdf
Download

Specifications

Mounting method
Direct mounting
Nominal voltage AC (V)
230
Max. continuous voltage AC (V)
255
Nominal load current (A)
16
Nominal discharge surge current (8/20) (kA)
5
Total discharge current (8/20) (kA)
5
Connector (information technology)
F-Connector
Voltage protection level L-N (kV)
1.25
Voltage protection level L-PE/N-PE (kV)
1.5
Signal - max. continuous voltage DC (V)
60
Signalling at the device
Optic
With remote signalling contact
No
