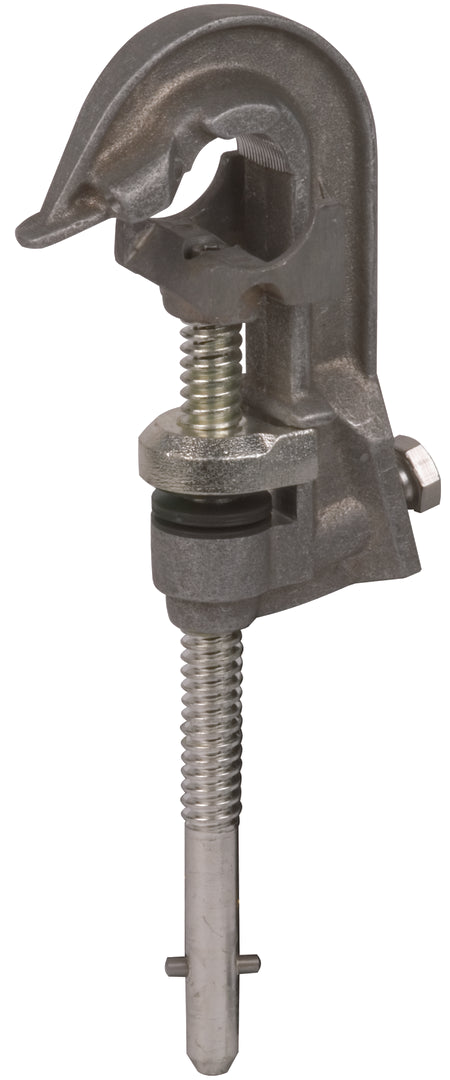

Dehn Phase Screw Clamp For Connecting Element PK1 - 784301
This is a Dehn connection element for earthing and short-circuiting provisions, suitable for wire cross-sections of 16 - 120mm² and clamp ranges of 10 - 65mm. It is designed for overhead power cable connections, featuring a maximum short-circuit current of 33.5kA. The connection element includes an anti-rotation feature, and the operating rod spindle is secured with a transverse pin. Primarily, it is used for phase-side applications. This standard phase screw clamp comes with a long threaded T pin shaft used for connecting phase cables in accordance with EN/IEC 61230 (DIN VDE 0683-100), incorporating a PK1 anti-rotation element.
- Regular price
- $406.81 USD
We sell only to registered businesses
Description
This is a Dehn connection element for earthing and short-circuiting provisions, suitable for wire cross-sections of 16 - 120mm² and clamp ranges of 10 - 65mm. It is designed for overhead power cable connections, featuring a maximum short-circuit current of 33.5kA. The connection element includes an anti-rotation feature, and the operating rod spindle is secured with a transverse pin. Primarily, it is used for phase-side applications. This standard phase screw clamp comes with a long threaded T pin shaft used for connecting phase cables in accordance with EN/IEC 61230 (DIN VDE 0683-100), incorporating a PK1 anti-rotation element.
