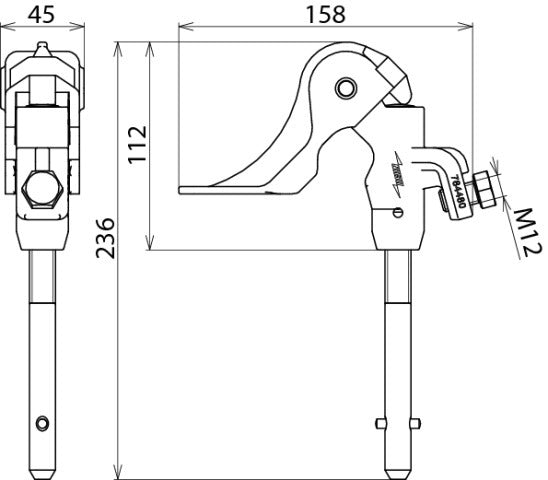

Dehn Phase Screw Clamp D 4-30mm T Pin Shaft PK1 16-70mm2 - 784480

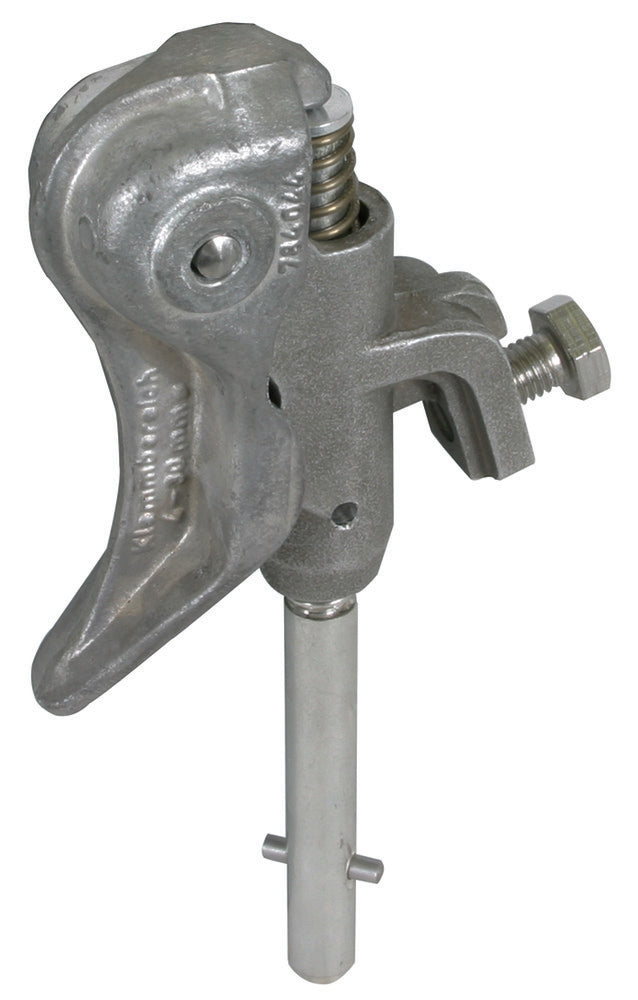

This is a spring-loaded phase screw clamp with a long threaded T pin shaft designed for connecting phase cables of earthing and short-circuiting devices to overhead lines in compliance with EN/IEC 61230 (DIN VDE 0683-100). The device is equipped with a PK1 anti-rotation element and possesses a maximum short-circuit current of 19.5kA. It is suitable for a cable cross-section of 16 - 70mm² and a clamping range of 4 - 30mm. Finally, it involves an above-the-ground cable connection method and includes a spindle control rod attachment with the cross pin. It is applied on the phase side.
- Regular price
- $217.46 USD
We sell only to registered businesses
Description
This is a spring-loaded phase screw clamp with a long threaded T pin shaft designed for connecting phase cables of earthing and short-circuiting devices to overhead lines in compliance with EN/IEC 61230 (DIN VDE 0683-100). The device is equipped with a PK1 anti-rotation element and possesses a maximum short-circuit current of 19.5kA. It is suitable for a cable cross-section of 16 - 70mm² and a clamping range of 4 - 30mm. Finally, it involves an above-the-ground cable connection method and includes a spindle control rod attachment with the cross pin. It is applied on the phase side.
