Dehn Overvoltage Safe Connecting Clamp - 308035

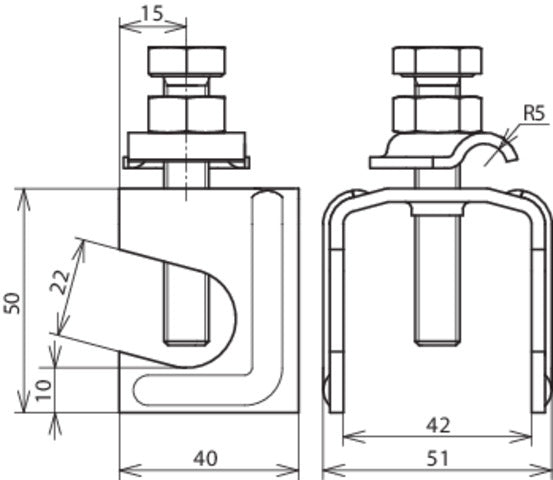

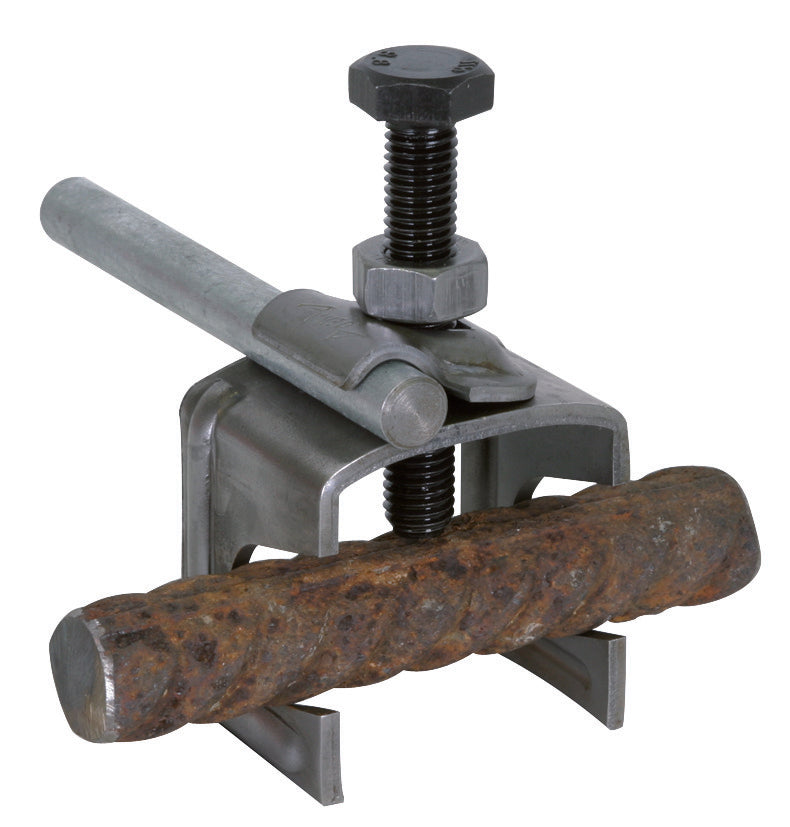

The item is a steel Dehn connector for lightning protection, suitable for T, cross, or parallel plug connections. Its construction accommodates a round conductor with a diameter of 6 - 22mm and a flat conductor with a diameter of 40mm. It also accepts a second round conductor with a diameter of 6 - 10mm. The connector doesn't have any surface protection and is untreated. The fixing screws are hexagonal in shape. It is a connecting clamp that complies with EN 62561-1 and is designed for attaching reinforcement. It includes a clamping piece making it versatile for flexible connection of round conductors or fixed earthing terminals when secured in the formwork, and specifically designed for small diameters.
- Regular price
- $9.13 USD
We sell only to registered businesses
Description
The item is a steel Dehn connector for lightning protection, suitable for T, cross, or parallel plug connections. Its construction accommodates a round conductor with a diameter of 6 - 22mm and a flat conductor with a diameter of 40mm. It also accepts a second round conductor with a diameter of 6 - 10mm. The connector doesn't have any surface protection and is untreated. The fixing screws are hexagonal in shape. It is a connecting clamp that complies with EN 62561-1 and is designed for attaching reinforcement. It includes a clamping piece making it versatile for flexible connection of round conductors or fixed earthing terminals when secured in the formwork, and specifically designed for small diameters.
