Dehn MV Clamp Stainless Steel For 10mm Round With Truss Head Screw - 391069

Dehn MV Clamp Stainless Steel For 10mm Round With Truss Head Screw - 391069
Dehn MV Clamp Stainless Steel For 10mm Round With Truss Head Screw - 391069
Dehn MV Clamp Stainless Steel For 10mm Round With Truss Head Screw - 391069
Dehn MV Clamp Stainless Steel For 10mm Round With Truss Head Screw - 391069
Image may vary slightly
See specifications for accurate information.
Reference: E3NFX
Brand: DEHN
Mfr. Part: 391069

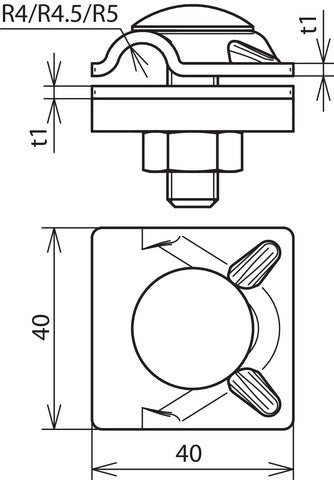

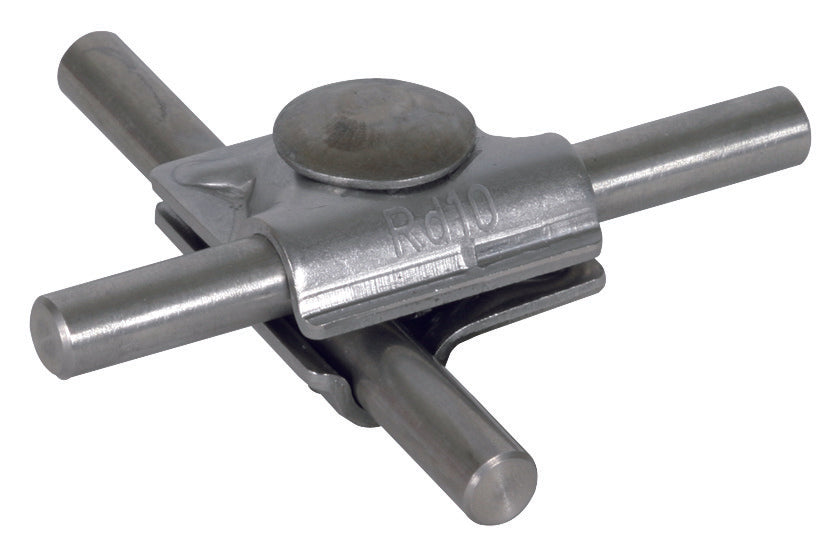

The Dehn MV connector for lightning protection is constructed of stainless steel 304 (V2A) and serves as a universal T-clamp, cross clamp, and parallel clamp for round conductors, according to EN 62561-1. Designed with a two-piece truss head screw, it has an anti-rotation feature for added stability. This connector can accommodate a round conductor with a diameter of 10mm. It does not come with any surface protection, thus it is untreated. The type of fastening screws that come with this connector is a flat head screw. The lightning current capacity of this connector is 10/350 µs 100kA.

View all
Note: product cannot be returned
€10,83
incl VAT
A VAT (value-added tax) is a goods and service tax that pertains to the European Union (EU). We, Tameson, are required by law to collect VAT for orders within the EU for customers that do not supply us with their VAT number.
€8,66
excl VAT
In stock Ships in 11d On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 11 days. Up to 100 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.

Customers rate us: 4.92 / 5

664 reviews at TrustedShops

Description
Specifications
Downloads

Description

The Dehn MV connector for lightning protection is constructed of stainless steel 304 (V2A) and serves as a universal T-clamp, cross clamp, and parallel clamp for round conductors, according to EN 62561-1. Designed with a two-piece truss head screw, it has an anti-rotation feature for added stability. This connector can accommodate a round conductor with a diameter of 10mm. It does not come with any surface protection, thus it is untreated. The type of fastening screws that come with this connector is a flat head screw. The lightning current capacity of this connector is 10/350 µs 100kA.

Downloads

Product datasheet (EN)
pdf
Download

Specifications
