Dehn MV Clamp AL With Truss Head Screw 8-10mm - 390061

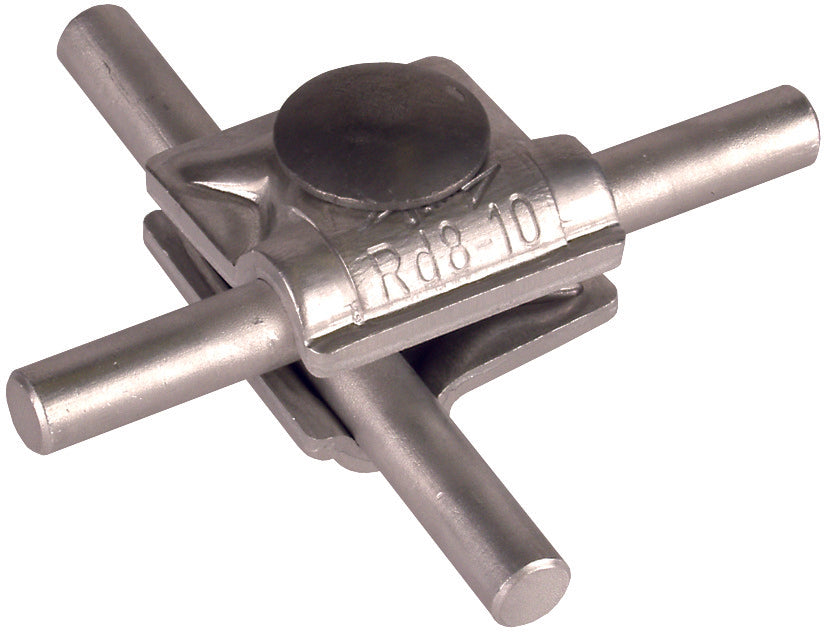

This is a multipurpose connecting clamp designed in accordance with EN 62561-1, intended for universal applications such as cross clamps, T clamps, and parallel clamps for round conductors. Features include a two-piece structure with a truss head screw, anti-rotation protection, and no surface protection. The clamp is made of aluminum and has diameters for round conductors of 8 to 10mm for both conductor 1 and 2. Furthermore, the type of fixing screws used is a countersunk head screw. Lastly, it is capable of carrying a lightning current of 10/350 µs 100kA.
- Regular price
- $6.54 USD
We sell only to registered businesses
Description
This is a multipurpose connecting clamp designed in accordance with EN 62561-1, intended for universal applications such as cross clamps, T clamps, and parallel clamps for round conductors. Features include a two-piece structure with a truss head screw, anti-rotation protection, and no surface protection. The clamp is made of aluminum and has diameters for round conductors of 8 to 10mm for both conductor 1 and 2. Furthermore, the type of fixing screws used is a countersunk head screw. Lastly, it is capable of carrying a lightning current of 10/350 µs 100kA.
