Dehn M16 25mm Straight Fixed Ball Point - 755600

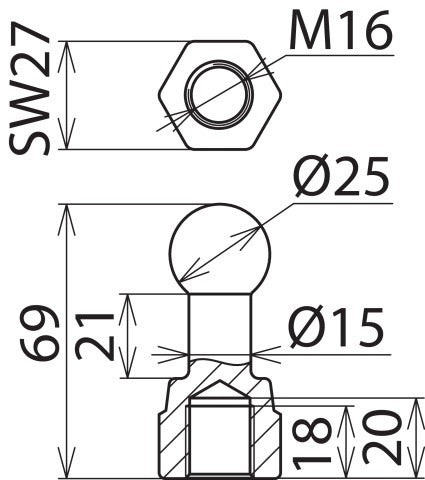

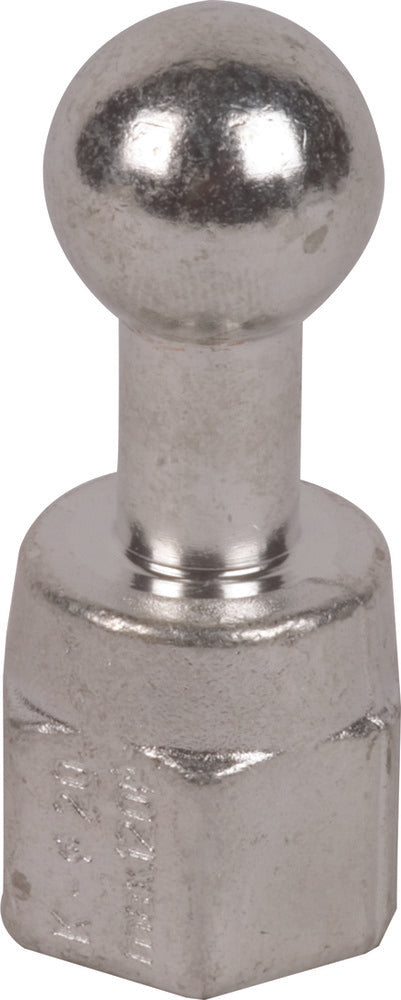

This item is a straight fixed ball point with a female thread designed for use as both the phase-side and earth-side point of connection in accordance with EN/IEC 61230 (DIN VDE 0683-100) on the conductor and the earthing system. The maximum short circuit current is 42kA and the fixture point diameter is 25mm. It exhibits high mechanical strength as the thread is not cut, making it suitable for fixing cable lugs or connecting busbars as per DIN 43673-1. Maximum wire cross-section for copper is 150mm². This fixture is straight in design, with an internal thread.
- Regular price
- $36.56 USD
We sell only to registered businesses
Description
This item is a straight fixed ball point with a female thread designed for use as both the phase-side and earth-side point of connection in accordance with EN/IEC 61230 (DIN VDE 0683-100) on the conductor and the earthing system. The maximum short circuit current is 42kA and the fixture point diameter is 25mm. It exhibits high mechanical strength as the thread is not cut, making it suitable for fixing cable lugs or connecting busbars as per DIN 43673-1. Maximum wire cross-section for copper is 150mm². This fixture is straight in design, with an internal thread.
