Dehn KS V4A Clamping Screw Connector For Rd 6-10mm - 301089
Notice: This product will be discontinued in the future

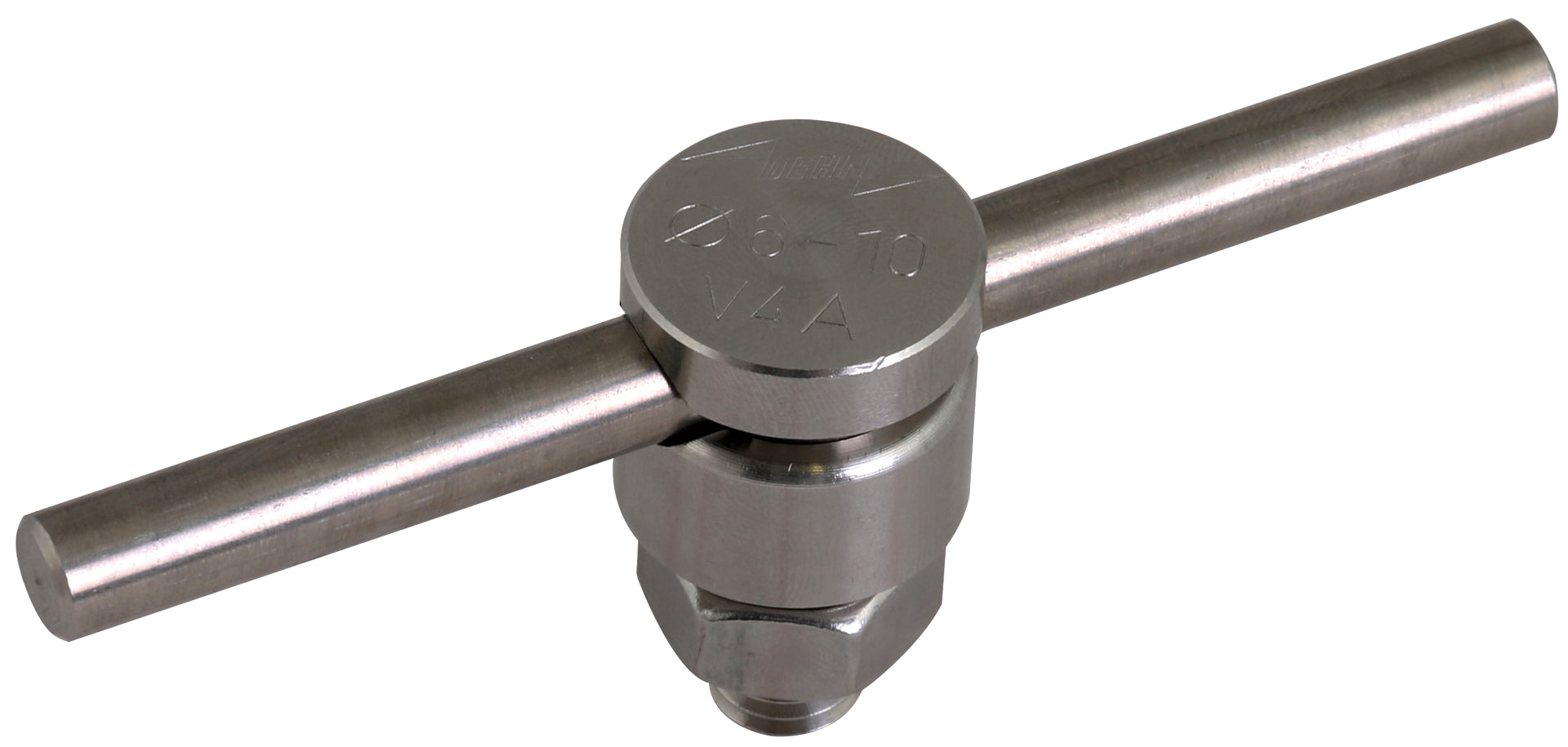

This is a clamping screw connector that complies with DIN EN 62561-1, used for lightning current carrying connections of round conductors, namely for flat profiles, downpipe clamps, or other parts of the lightning protection system. Designed as a one-piece item, it's made of stainless steel 316 (V4A) and equipped with a screw and nut M10. The connector caters to a round conductor diameter ranging from 1.6 - 10mm, with no surface protection (untreated). It employs a clamping screw for fixation and possesses a lightning current resistance of 100kA at 10/350 µs.
Notice: This product will be discontinued in the future
Description
This is a clamping screw connector that complies with DIN EN 62561-1, used for lightning current carrying connections of round conductors, namely for flat profiles, downpipe clamps, or other parts of the lightning protection system. Designed as a one-piece item, it's made of stainless steel 316 (V4A) and equipped with a screw and nut M10. The connector caters to a round conductor diameter ranging from 1.6 - 10mm, with no surface protection (untreated). It employs a clamping screw for fixation and possesses a lightning current resistance of 100kA at 10/350 µs.
