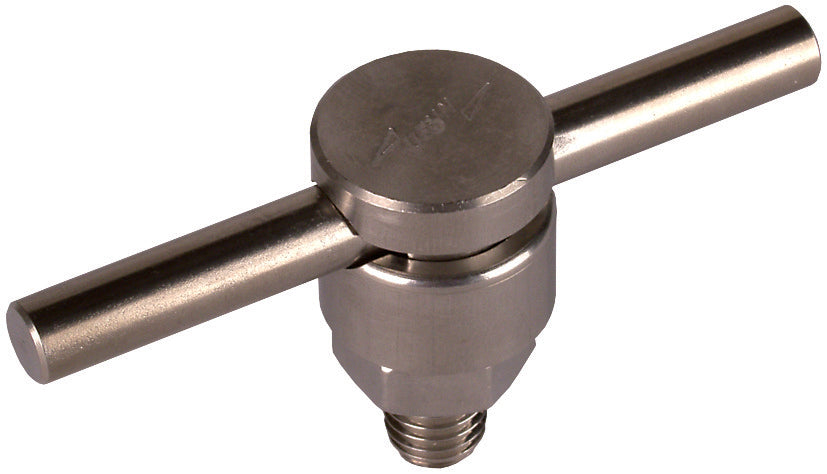

Dehn KS Connector Single Part Unit With Spring Washer - 301019
The Dehn KS connector is designed for lightning protection applications. Made from stainless steel 304 (V2A), its connection type is connector and it uses a clamping screw mechanism for secure fastening. The connector has a diameter of 1.6-10mm for round conductors and does not have any surface protection, being untreated. Its lightning current carrying capacity is 10/350 µs 100kA. This one-piece connector is in compliance with DIN EN 62561-1 standards and can efficiently link round conductors to flat profiles, downpipe clamps, or other parts of the lightning protection system. It's also equipped with a M10 screw, spring washer, and nut for easy installation.
- Regular price
- $12.19 USD
We sell only to registered businesses
Description
The Dehn KS connector is designed for lightning protection applications. Made from stainless steel 304 (V2A), its connection type is connector and it uses a clamping screw mechanism for secure fastening. The connector has a diameter of 1.6-10mm for round conductors and does not have any surface protection, being untreated. Its lightning current carrying capacity is 10/350 µs 100kA. This one-piece connector is in compliance with DIN EN 62561-1 standards and can efficiently link round conductors to flat profiles, downpipe clamps, or other parts of the lightning protection system. It's also equipped with a M10 screw, spring washer, and nut for easy installation.
