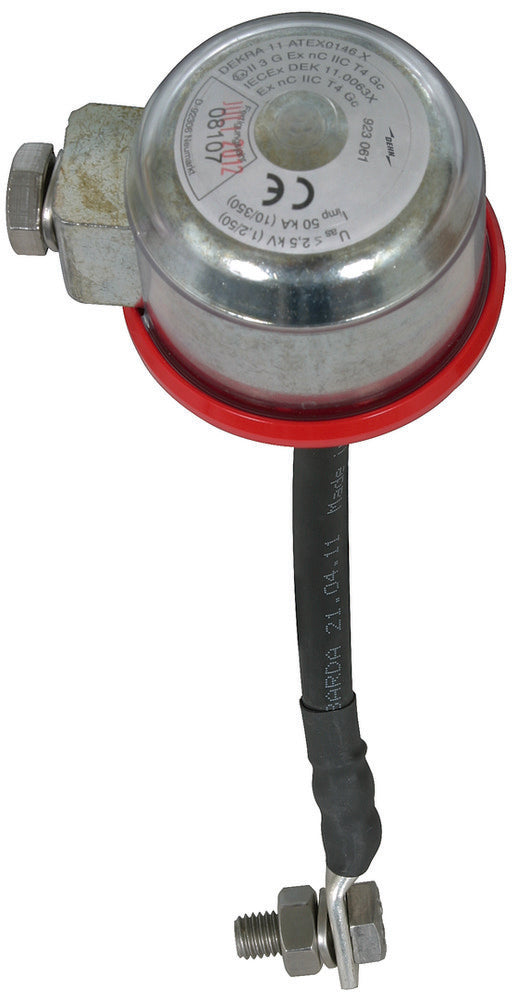

Dehn Isolating Spark Gap For Ex Area With Connecting Cable - 923061

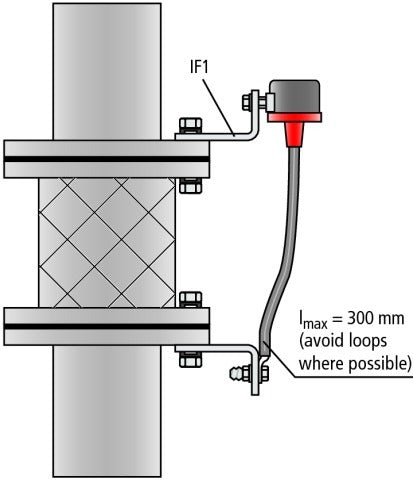

This is an Ex isolating spark gap designed for indirect connection or earthing of isolated installation parts under lightning conditions. It's intended for secure installation in Ex zone 2 (gases), with a lightning current (10/350) of 50kA and nominal spark-over voltage of 2.5kV. It maintains a nominal line frequency holding voltage of 300V and is fitted with a flange and an RVS 304 (V2A) connection. ATEX-certified for use in hazardous areas (zone 2), it complies with IEC 62305 for lightning equipotential bonding and features a protection rating of IP54. The design includes a flexible conductor connection.
- Regular price
- $306.37 USD
We sell only to registered businesses
Description
This is an Ex isolating spark gap designed for indirect connection or earthing of isolated installation parts under lightning conditions. It's intended for secure installation in Ex zone 2 (gases), with a lightning current (10/350) of 50kA and nominal spark-over voltage of 2.5kV. It maintains a nominal line frequency holding voltage of 300V and is fitted with a flange and an RVS 304 (V2A) connection. ATEX-certified for use in hazardous areas (zone 2), it complies with IEC 62305 for lightning equipotential bonding and features a protection rating of IP54. The design includes a flexible conductor connection.
