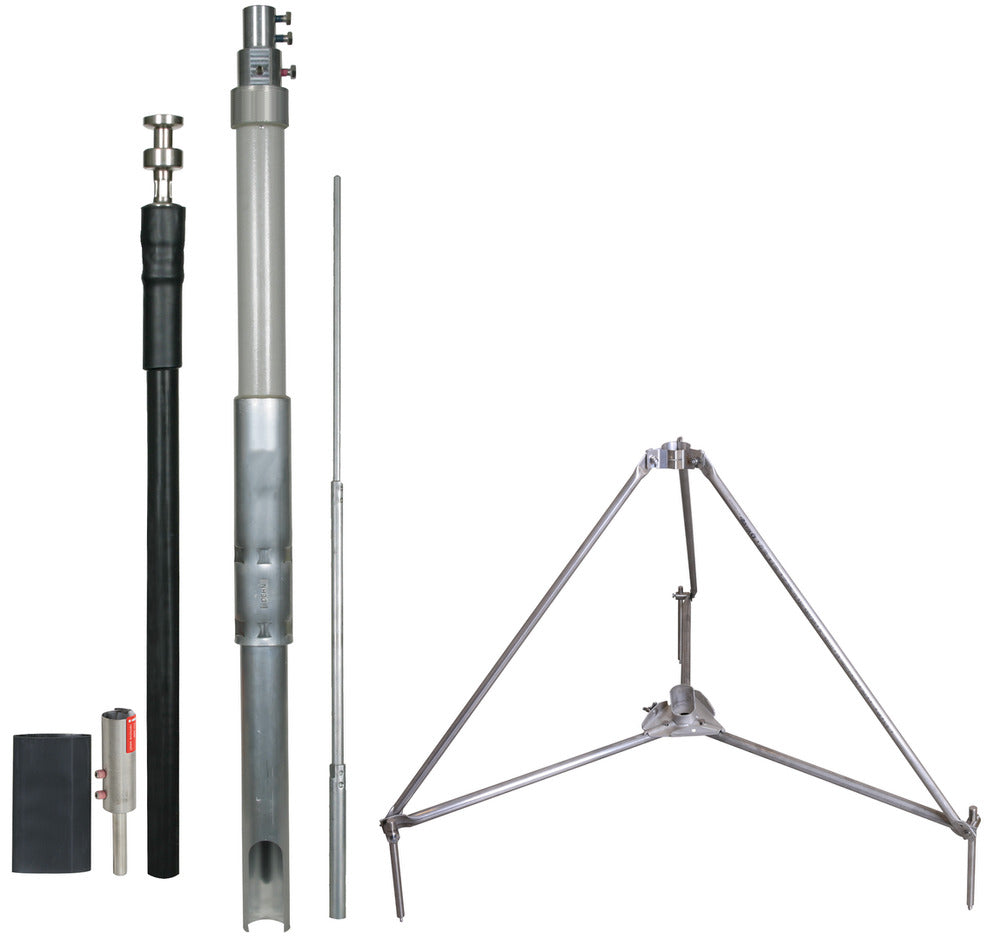

Dehn HVI Conductor Support Tube and Air Terminal Rod - 819383

Dehn HVI Conductor Support Tube and Air Terminal Rod - 819383
Image may vary slightly
See specifications for accurate information.
Reference: E3QWK
Brand: DEHN
Mfr. Part: 819383

The HVI Conductor, compliant with DIN EN 62305-3, is designed for maintaining a separation distance from electrically conductive parts to prevent dangerous flashovers. It features an outer sheath that allows high lightning impulse voltages to be discharged to a reference potential. The solid, copper conductor has a nominal diameter of 5mm and a cross-section area of 19mm², enclosed in grey XLPE insulation. It is designed with an internal sealing end, an EB spring element enclosed in a supporting tube of length 3200mm, an air-termination rod and an earth connection element. The separation distance is ≤ 75cm in air or ≤ 150cm in solid material.

View all
Note: product cannot be returned
Regular price
$1786.39
excl VAT

In stock +11 days On request On request
0 are currently in your cart. For orders exceeding 0, expect an increased lead time of 11 days. Up to 1 items available for online order. For higher quantities, please contact us on support@tameson.com to request the lead time. The item is not available for online order, please contact us on support@tameson.com to request the lead time.


Shipping to United States: Free
Free for orders > $390.00
Expected delivery in 13 - 14 business days

Description
Specifications
Downloads

The HVI Conductor, compliant with DIN EN 62305-3, is designed for maintaining a separation distance from electrically conductive parts to prevent dangerous flashovers. It features an outer sheath that allows high lightning impulse voltages to be discharged to a reference potential. The solid, copper conductor has a nominal diameter of 5mm and a cross-section area of 19mm², enclosed in grey XLPE insulation. It is designed with an internal sealing end, an EB spring element enclosed in a supporting tube of length 3200mm, an air-termination rod and an earth connection element. The separation distance is ≤ 75cm in air or ≤ 150cm in solid material.
