Dehn HVI Conductor D23mm With Support Tube L3200mm Air Terminal Rod - 819336

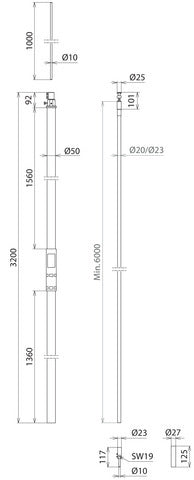

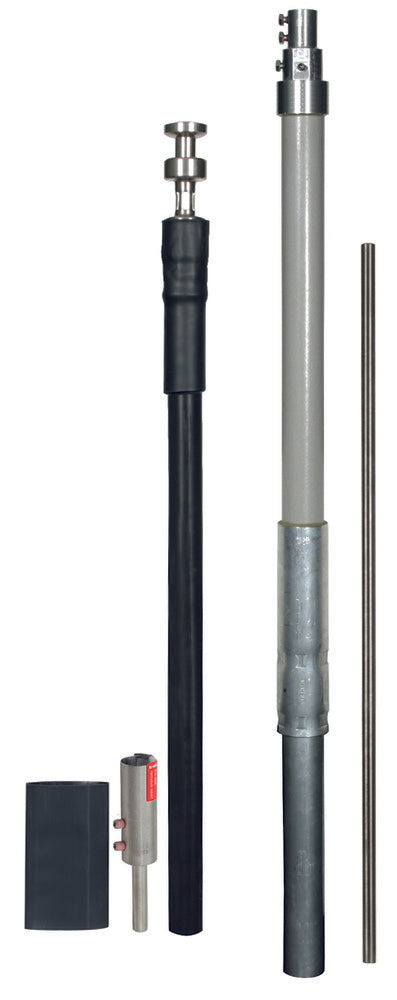

The HVI Conductor is a high-voltage-resistant, insulated down conductor placed in a supporting tube for maintaining the separation distance from electrically conductive parts as per IEC 62305-3. This prevents dangerous flashover between external lightning protection system components and indoor conductive parts such as electrical installations and piping. The conductor, equipped with a special outer sheath to avoid creeping discharge, enables high lightning impulse voltages to discharge to a reference potential. The grey conductor comes with a sealing end and a spring element inside a 3200 mm supporting tube, an air-termination tip of 1000 mm length and an earth connection element. The equivalent separation distance is ≤ 075 cm in air and ≤ 150 cm in solid material.
- Regular price
- $2,198.20 USD
We sell only to registered businesses
Description
The HVI Conductor is a high-voltage-resistant, insulated down conductor placed in a supporting tube for maintaining the separation distance from electrically conductive parts as per IEC 62305-3. This prevents dangerous flashover between external lightning protection system components and indoor conductive parts such as electrical installations and piping. The conductor, equipped with a special outer sheath to avoid creeping discharge, enables high lightning impulse voltages to discharge to a reference potential. The grey conductor comes with a sealing end and a spring element inside a 3200 mm supporting tube, an air-termination tip of 1000 mm length and an earth connection element. The equivalent separation distance is ≤ 075 cm in air and ≤ 150 cm in solid material.
