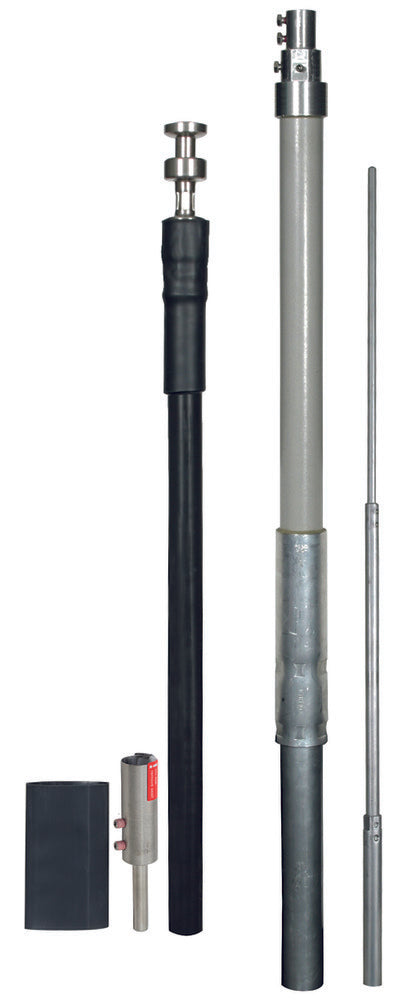

Dehn HVI Conductor D 20mm Cu Support Tube L 3200mm Air-Term Rod - 819328
The Dehn HVI Conductor for lightning protection is a high-voltage-resistant, insulated down conductor encased in a supporting tube, maintaining a safe distance from electrically conductive parts as per IEC 62305-3 norms. Its core is made of copper with a cross-section of 19mm², composed of 7 class 2 strands. The conductor, black in color, features a unique outer sheath that enables high lightning impulse voltages to discharge towards a reference potential. It has a nominal conductor diameter of 5mm and an outer insulated conductor diameter of 20mm, includes sealing end, EB spring, air-termination rod, and earth connection element.
- Regular price
- $2,908.69 USD
We sell only to registered businesses
Description

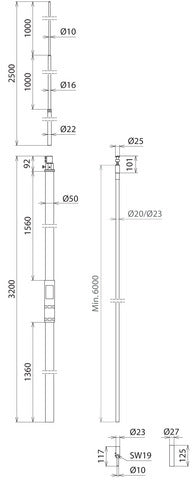

The Dehn HVI Conductor for lightning protection is a high-voltage-resistant, insulated down conductor encased in a supporting tube, maintaining a safe distance from electrically conductive parts as per IEC 62305-3 norms. Its core is made of copper with a cross-section of 19mm², composed of 7 class 2 strands. The conductor, black in color, features a unique outer sheath that enables high lightning impulse voltages to discharge towards a reference potential. It has a nominal conductor diameter of 5mm and an outer insulated conductor diameter of 20mm, includes sealing end, EB spring, air-termination rod, and earth connection element.
