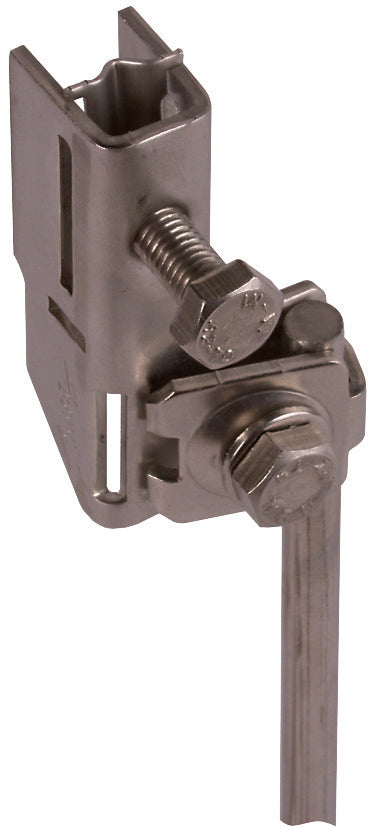

Dehn Grip Holder For Continuous Tensioning Strap - 540110
This is an antenna pipe clamp that complies with EN 62561-1, designed for integrating pipes into protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and for lightning equipotential bonding as per IEC/EN 62305-3 standards. This clamp features a separate clamping head that can be coupled with an endless tensioning strap measuring 25 x 0.3 mm, facilitating the connection of a single conductor with a diameter of 10 mm, 1-2 conductors with a diameter between 6-8 mm, or a 4-50 mm² (solid/stranded).
- Regular price
- $8.96 USD
We sell only to registered businesses
Description
This is an antenna pipe clamp that complies with EN 62561-1, designed for integrating pipes into protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54 (DIN VDE 0100-410/540) and for lightning equipotential bonding as per IEC/EN 62305-3 standards. This clamp features a separate clamping head that can be coupled with an endless tensioning strap measuring 25 x 0.3 mm, facilitating the connection of a single conductor with a diameter of 10 mm, 1-2 conductors with a diameter between 6-8 mm, or a 4-50 mm² (solid/stranded).
