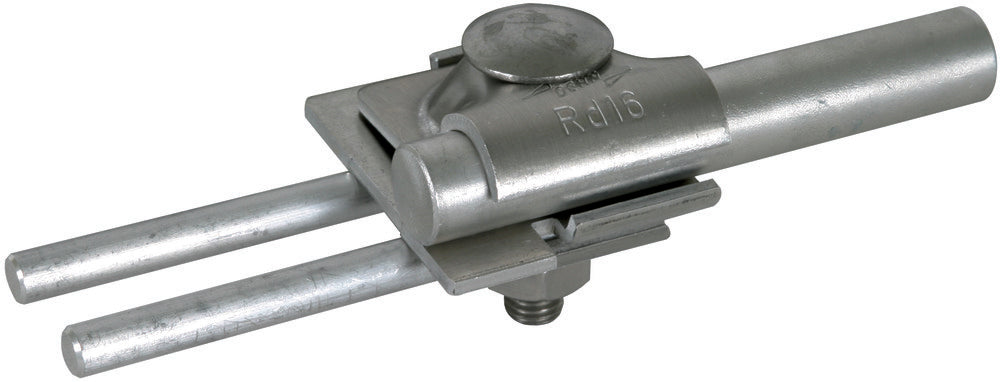

Dehn FS Clamp For 2-Fold Connection Air Terminal Rod - 380116
This is a Dehn connector used for lightning protection, composed of aluminum, with a parallel plug connection type. The first round conductor diameter is 16mm, and the second round conductor diameter ranges between 8 - 10mm. The surface is not treated, providing no surface protection. The type of fastening screws is not specified. It is a FS clamp in accordance with EN 62561-1 standards. This clamp is utilized for connecting air-termination rods Rd 10mm to two round conductors. The clamp comes with a truss head screw and anti-rotation protection, suitable for longitudinal or cross connection.
- Regular price
- $7.95 USD
We sell only to registered businesses
Description
This is a Dehn connector used for lightning protection, composed of aluminum, with a parallel plug connection type. The first round conductor diameter is 16mm, and the second round conductor diameter ranges between 8 - 10mm. The surface is not treated, providing no surface protection. The type of fastening screws is not specified. It is a FS clamp in accordance with EN 62561-1 standards. This clamp is utilized for connecting air-termination rods Rd 10mm to two round conductors. The clamp comes with a truss head screw and anti-rotation protection, suitable for longitudinal or cross connection.
