DEHN Fixed Earthing Terminal Type M M10/M12 Stainless Steel - 478200
Notice: This product is discontinued

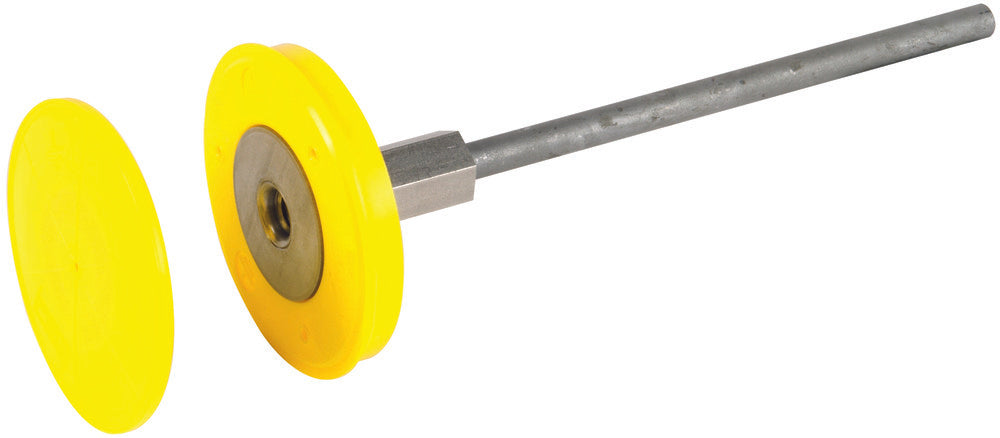

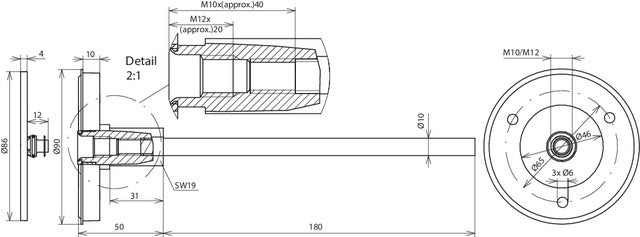

This is a Dehn earthing terminal, constructed from corrosion-resistant 316 stainless steel, which adheres to EN 62561-1 standards. It serves as the connection between the down conductor and the building reinforcement or earth-termination system. This terminal is essential for protective and functional equipotential bonding, and is designed for installation within the formwork. The terminal features a fixed type K (plastic ring), a 10 mm connecting shaft and an M10/M12 connection thread. It measures 50 mm in length, with a connection shaft of 180 mm, and a connection plate diameter of 90mm. The connection tab is made of steel.
Notice: This product is discontinued
Description
This is a Dehn earthing terminal, constructed from corrosion-resistant 316 stainless steel, which adheres to EN 62561-1 standards. It serves as the connection between the down conductor and the building reinforcement or earth-termination system. This terminal is essential for protective and functional equipotential bonding, and is designed for installation within the formwork. The terminal features a fixed type K (plastic ring), a 10 mm connecting shaft and an M10/M12 connection thread. It measures 50 mm in length, with a connection shaft of 180 mm, and a connection plate diameter of 90mm. The connection tab is made of steel.
