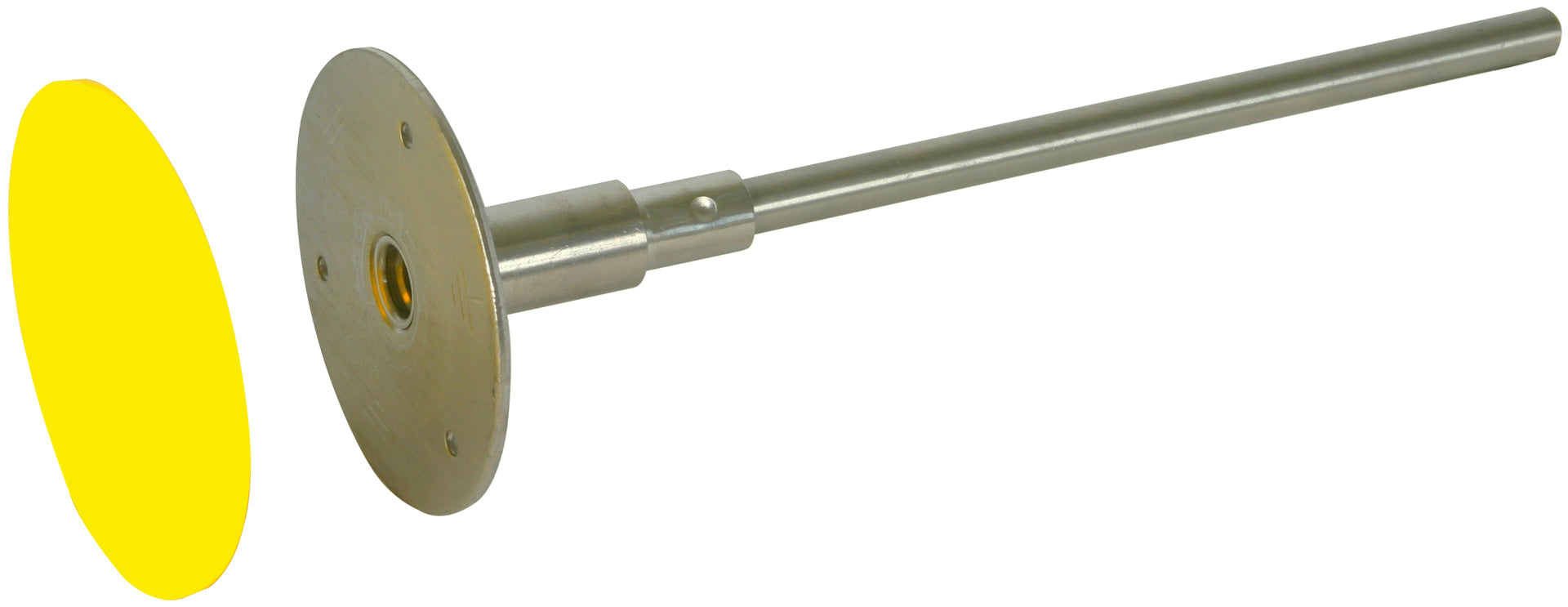

DEHN Fixed Earthing Terminal M10 M12 V4A L245 With Compressed Axis - 478049

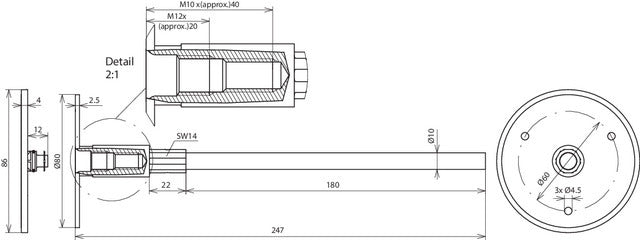

The Dehn Fixed Earthing Terminal corresponds to EN 62561-1, serves as a non-corrosive connection for the down conductor, designed to link to the building reinforcement or earth-termination system. It's suitable for protective and functional equipotential bonding and is designed for installation in the formwork. The unit is equipped with a press-fitted connecting shaft, 10 mm in size, as well as an M10/M12 connection thread. The terminal has a length of 50 mm, a shaft size of 180mm, and a connecting plate diameter of 80mm. Components are made of stainless steel 316 (V4A), while the terminal lug is stainless steel 304 (V2A).
- Regular price
- $38.88
Description
The Dehn Fixed Earthing Terminal corresponds to EN 62561-1, serves as a non-corrosive connection for the down conductor, designed to link to the building reinforcement or earth-termination system. It's suitable for protective and functional equipotential bonding and is designed for installation in the formwork. The unit is equipped with a press-fitted connecting shaft, 10 mm in size, as well as an M10/M12 connection thread. The terminal has a length of 50 mm, a shaft size of 180mm, and a connecting plate diameter of 80mm. Components are made of stainless steel 316 (V4A), while the terminal lug is stainless steel 304 (V2A).
