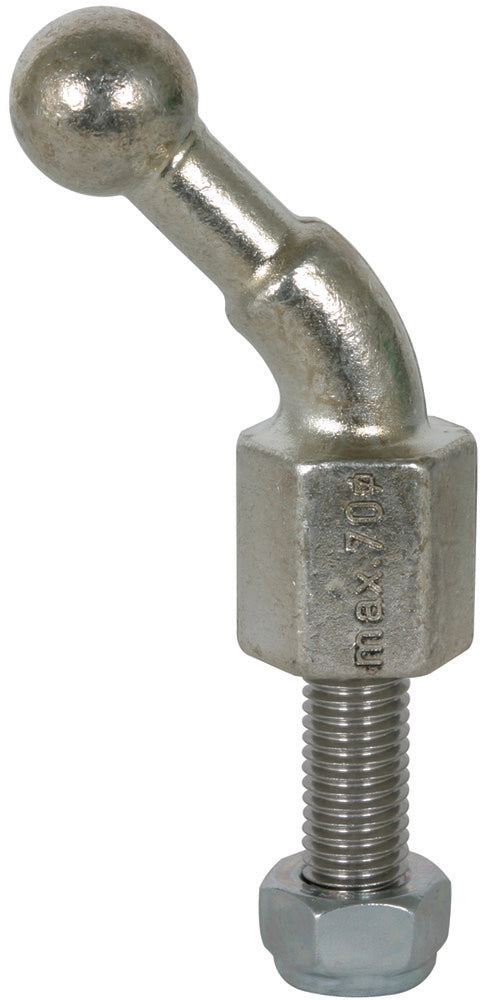

Dehn Fixed Ball Point D20mm Angled 45 Degree With Threaded Pin M16x45m - 706645
This is a 45° angled fixed ball point with a threaded pin and a self-locking nut, capable of serving as a line and earth connection point in accordance with EN/IEC 61230 (DIN VDE 0683-100). It is perfect for any conductor and earth-termination system and boasts high mechanical strength due to its female thread, which is not cut. Suitable for fixing cable lugs or connecting busbars as stated in DIN 43673-1, it can handle a maximum short circuit current of 19.5kA. It features a connection point measuring a diameter of 20mm and can accommodate a copper wire with a maximum diameter of 70mm².
- Regular price
- $54.83 USD
We sell only to registered businesses
Description

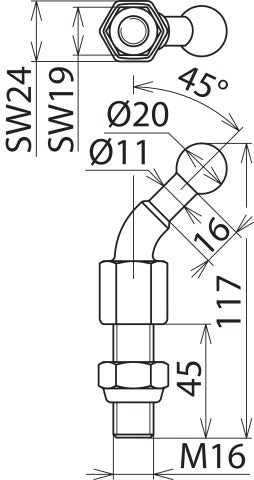

This is a 45° angled fixed ball point with a threaded pin and a self-locking nut, capable of serving as a line and earth connection point in accordance with EN/IEC 61230 (DIN VDE 0683-100). It is perfect for any conductor and earth-termination system and boasts high mechanical strength due to its female thread, which is not cut. Suitable for fixing cable lugs or connecting busbars as stated in DIN 43673-1, it can handle a maximum short circuit current of 19.5kA. It features a connection point measuring a diameter of 20mm and can accommodate a copper wire with a maximum diameter of 70mm².
