Dehn Fixed Ball Point D 25MM Clamp Type A Round Conductor - 725020

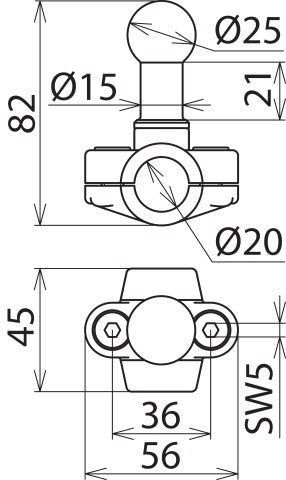

This is a fixed ball point with a diameter of 20 mm, designed for round copper conductors, that can be effectively used as both a phase-side and earth-side connection point. It is compliant with EN/IEC 61230 (DIN VDE 0683-100) standards and can be utilized on both the conductor as well as the earthing system. The device also includes stainless steel fixing screws for secure installation. It is capable of handling a maximum short-circuit current of 26.5kA. The unit is angular in design and suitable for round conductors, with a maximum copper wire cross-section of 95mm² and a confirmed connection point of 25mm. It is designed to facilitate earth continuity and provide a short-circuiting alternative.
- Regular price
- $151.72 USD
We sell only to registered businesses
Description
This is a fixed ball point with a diameter of 20 mm, designed for round copper conductors, that can be effectively used as both a phase-side and earth-side connection point. It is compliant with EN/IEC 61230 (DIN VDE 0683-100) standards and can be utilized on both the conductor as well as the earthing system. The device also includes stainless steel fixing screws for secure installation. It is capable of handling a maximum short-circuit current of 26.5kA. The unit is angular in design and suitable for round conductors, with a maximum copper wire cross-section of 95mm² and a confirmed connection point of 25mm. It is designed to facilitate earth continuity and provide a short-circuiting alternative.
