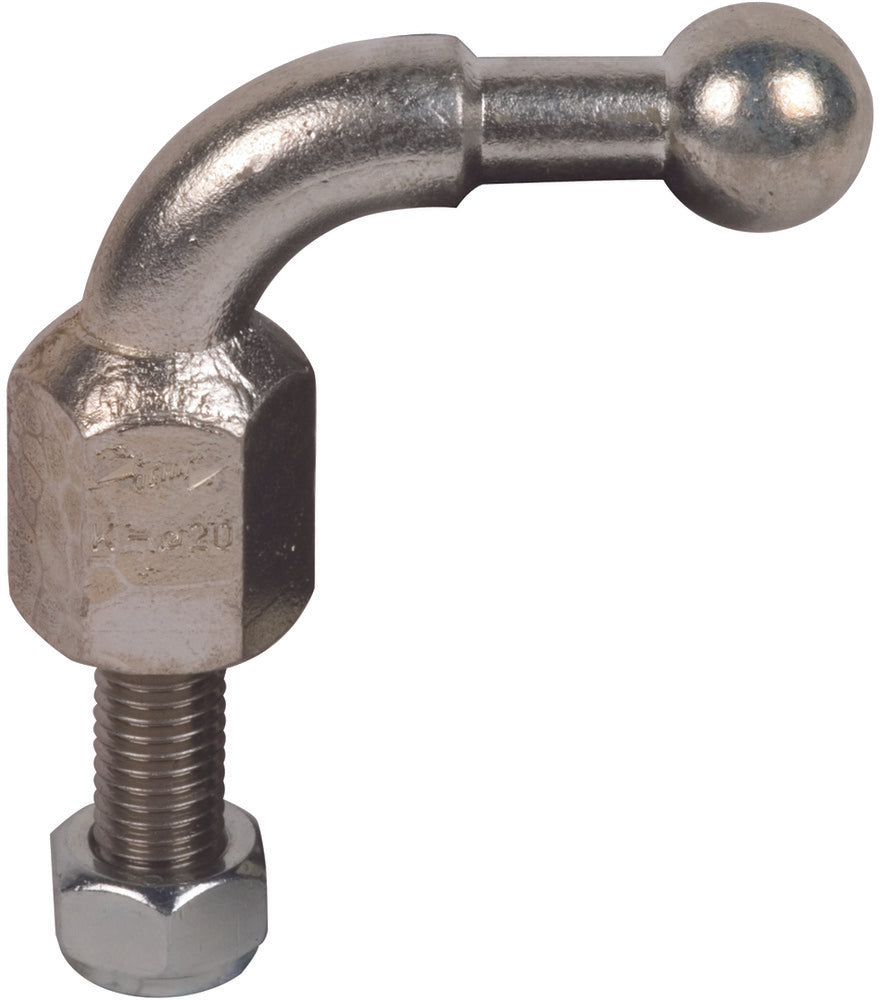

Dehn Fixed Ball Point 25mm Angled With Threaded Bolt M16 - 757645

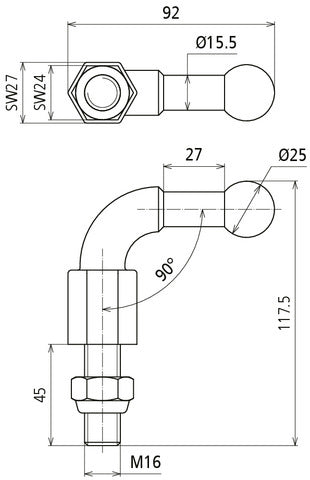

This is a 90° angled fixed ball point with a threaded pin and self-locking nut, to be used as a line and earth connection point in compliance with EN/IEC 61230 (DIN VDE 0683-100). It is designed for the conductor and earth-termination system, with a max short circuit current capacity of 26.5kA. The fixed ball point features a wire bolt and can secure cable lugs or connecting busbars per DIN 43673-1. It has high mechanical strength due to its female thread, which is not cut. The contact point of grounding and short circuit ball point is 25mm, while the max. wire cross-section for copper is 95mm², and the diameter of the fixed point is 25mm.
- Regular price
- $127.72 USD
We sell only to registered businesses
Description
This is a 90° angled fixed ball point with a threaded pin and self-locking nut, to be used as a line and earth connection point in compliance with EN/IEC 61230 (DIN VDE 0683-100). It is designed for the conductor and earth-termination system, with a max short circuit current capacity of 26.5kA. The fixed ball point features a wire bolt and can secure cable lugs or connecting busbars per DIN 43673-1. It has high mechanical strength due to its female thread, which is not cut. The contact point of grounding and short circuit ball point is 25mm, while the max. wire cross-section for copper is 95mm², and the diameter of the fixed point is 25mm.
