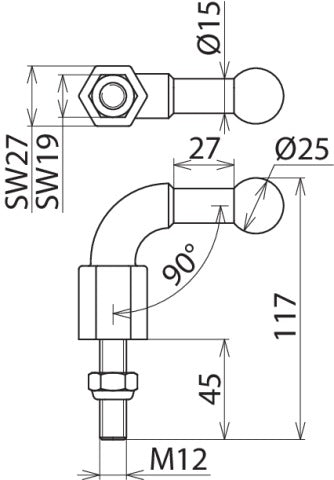

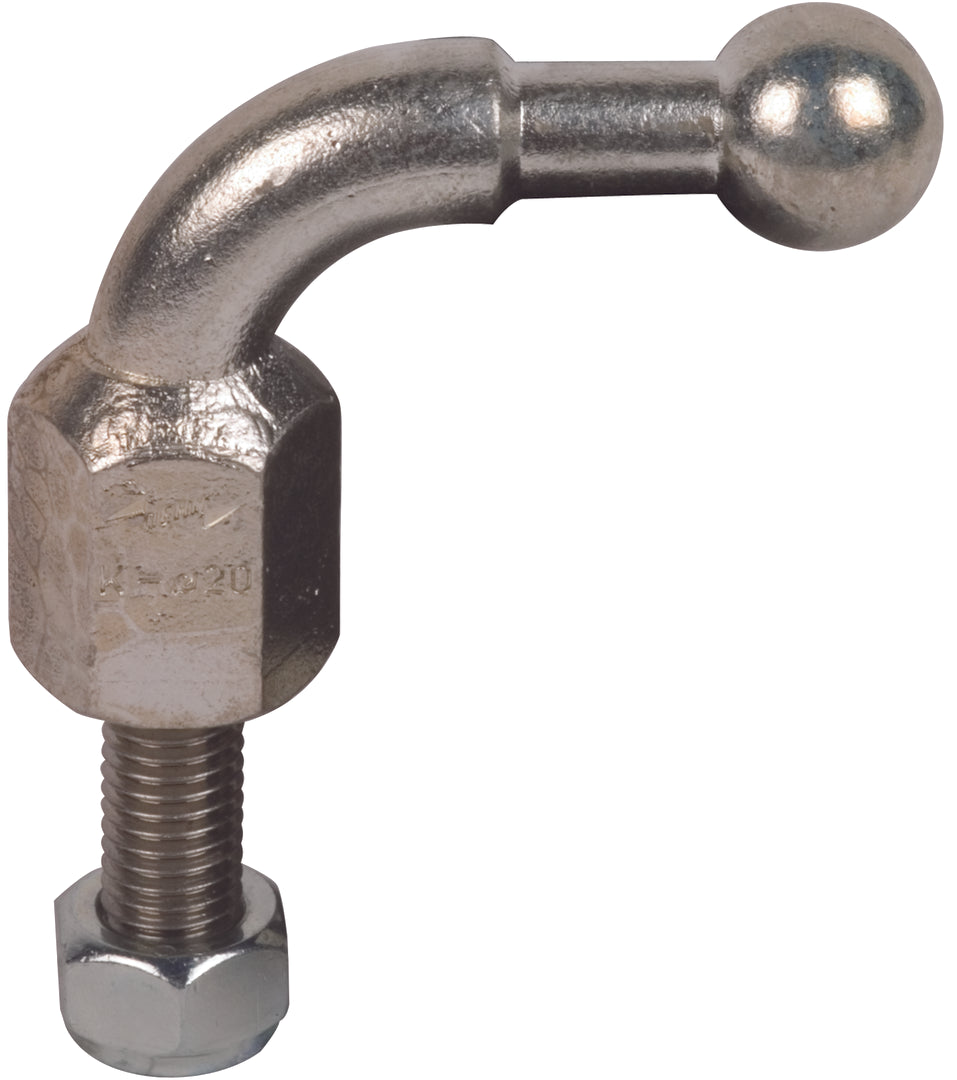

Dehn Fixed Ball Point 25mm Angled 90 degrees With Threaded Bolt M12x4 - 757245
The fixed ball point has a 90° angle with a threaded pin and self-locking nut, serving as a line and earth connection point following EN/IEC 61230 (DIN VDE 0683-100) at the conductor and the earth-termination system. It has high mechanical strength due to the female thread. The maximum short circuit current is 26.5kA with this angled shape fixed point accompanied by a threaded bolt. This device is suitable for connecting cable lugs or busbars following DIN 43673-1, with a maximum wire cross-section for copper of 95mm². The earth and short circuit fixed point measures 25mm in diameter.
- Regular price
- $118.44 USD
We sell only to registered businesses
Description
The fixed ball point has a 90° angle with a threaded pin and self-locking nut, serving as a line and earth connection point following EN/IEC 61230 (DIN VDE 0683-100) at the conductor and the earth-termination system. It has high mechanical strength due to the female thread. The maximum short circuit current is 26.5kA with this angled shape fixed point accompanied by a threaded bolt. This device is suitable for connecting cable lugs or busbars following DIN 43673-1, with a maximum wire cross-section for copper of 95mm². The earth and short circuit fixed point measures 25mm in diameter.
